Roundhouse build: making a Reciprocal Roof

1307 reciprocal roof - 01

Reciprocal roof frames are self-supporting structures that date back to the 12th Century. They are used in Chinese and Japanese architecture, as well as being something that Leonardo Da Vinci explored in detail.

The interlocking nature of the separate members creates a complimentary tension that, ultimately, results in an extremely strong, self-supporting roof.

The theory of it is surprisingly easy to follow, once you understand what’s going on. And so a reciprocal roof seemed the perfect choice for our recent experimental strawbale roundhouse that we built at Milkwood Farm…

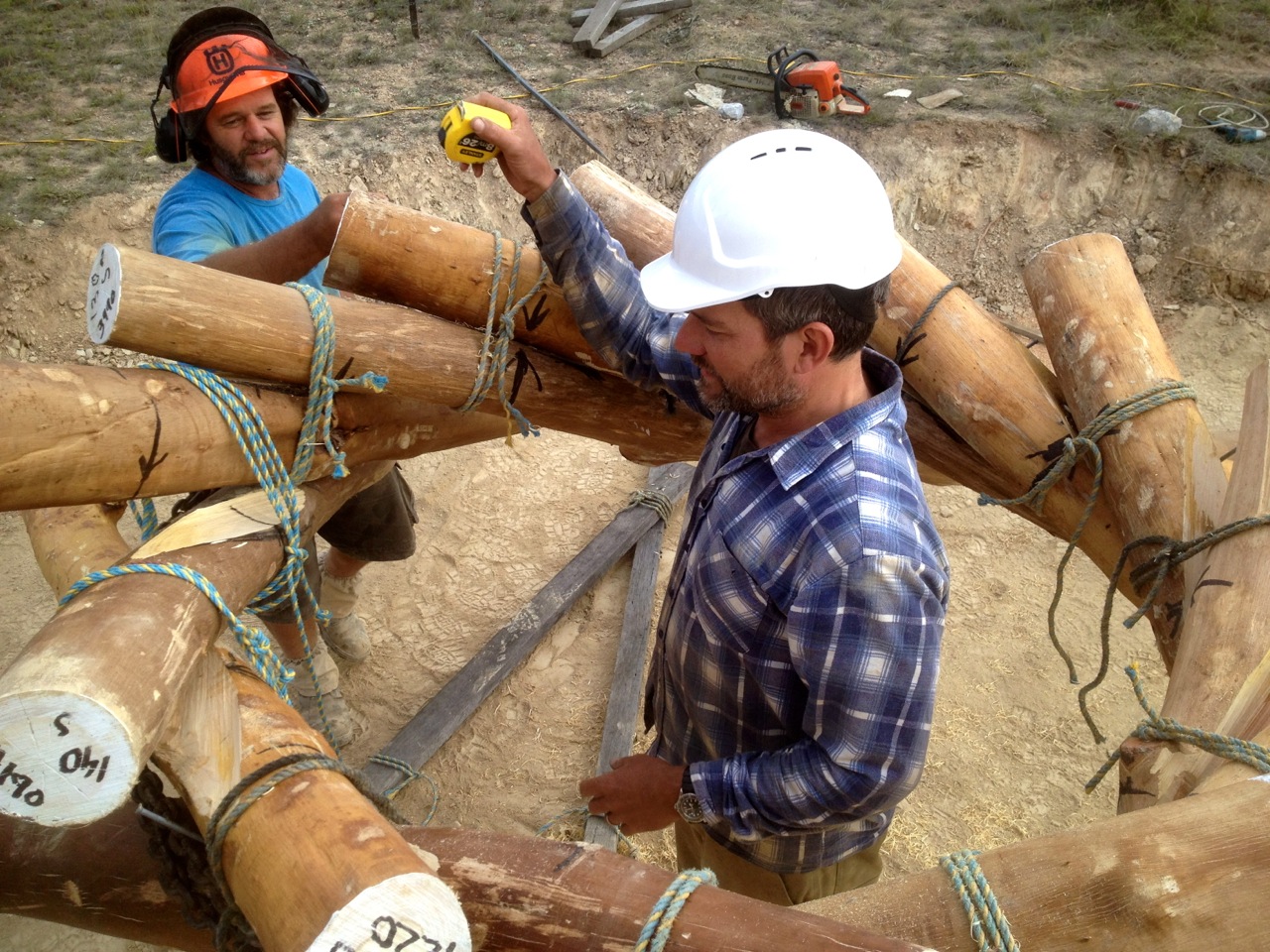

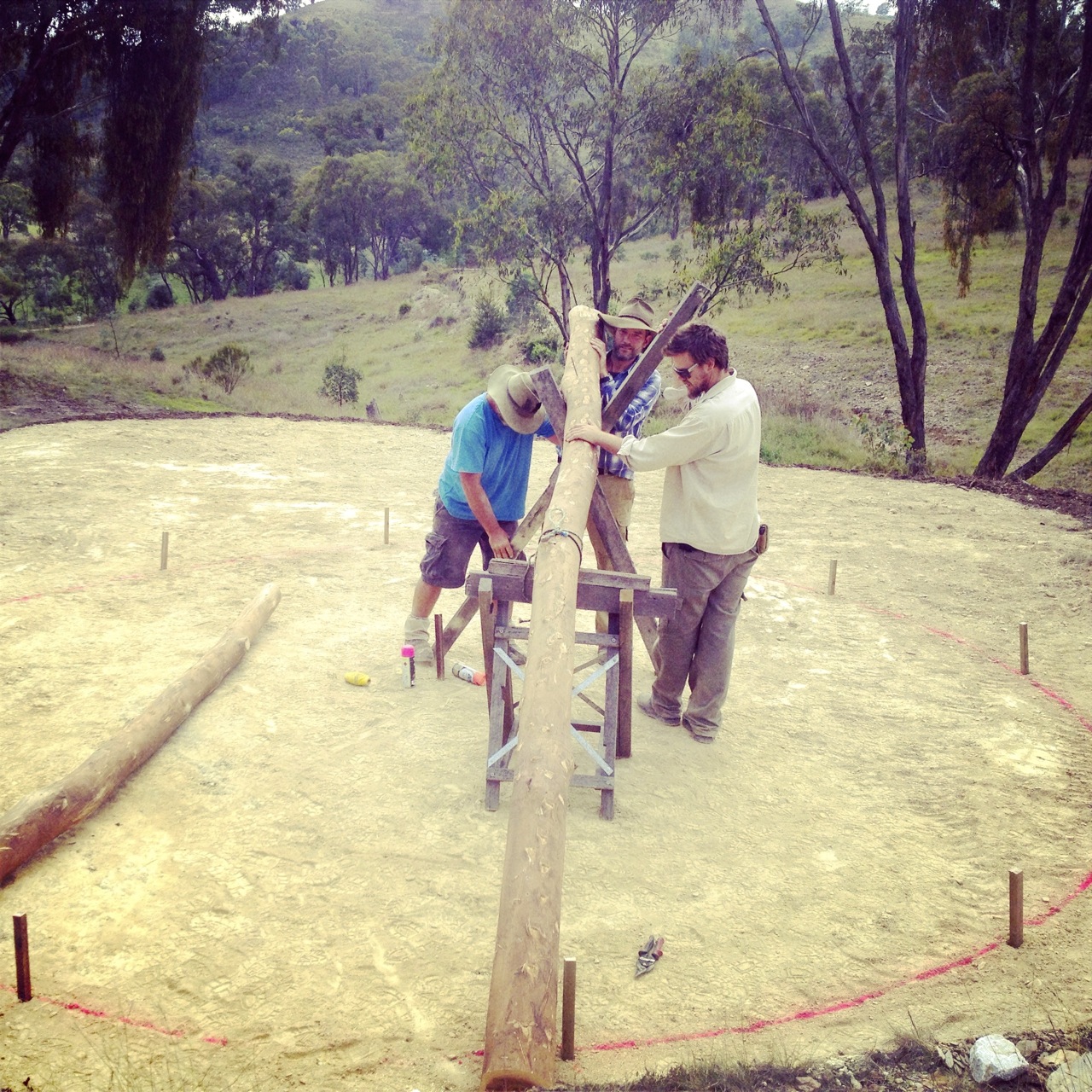

Shane, Nick and Floyd practicing making our reciprocal roof on the ground... to check we had everything right.

Shane, Nick and Floyd practicing making our reciprocal roof on the ground first… to check we had everything right.

It all seems to be working...

It all seems to be working (we were a bit overcautious on the ropes)…

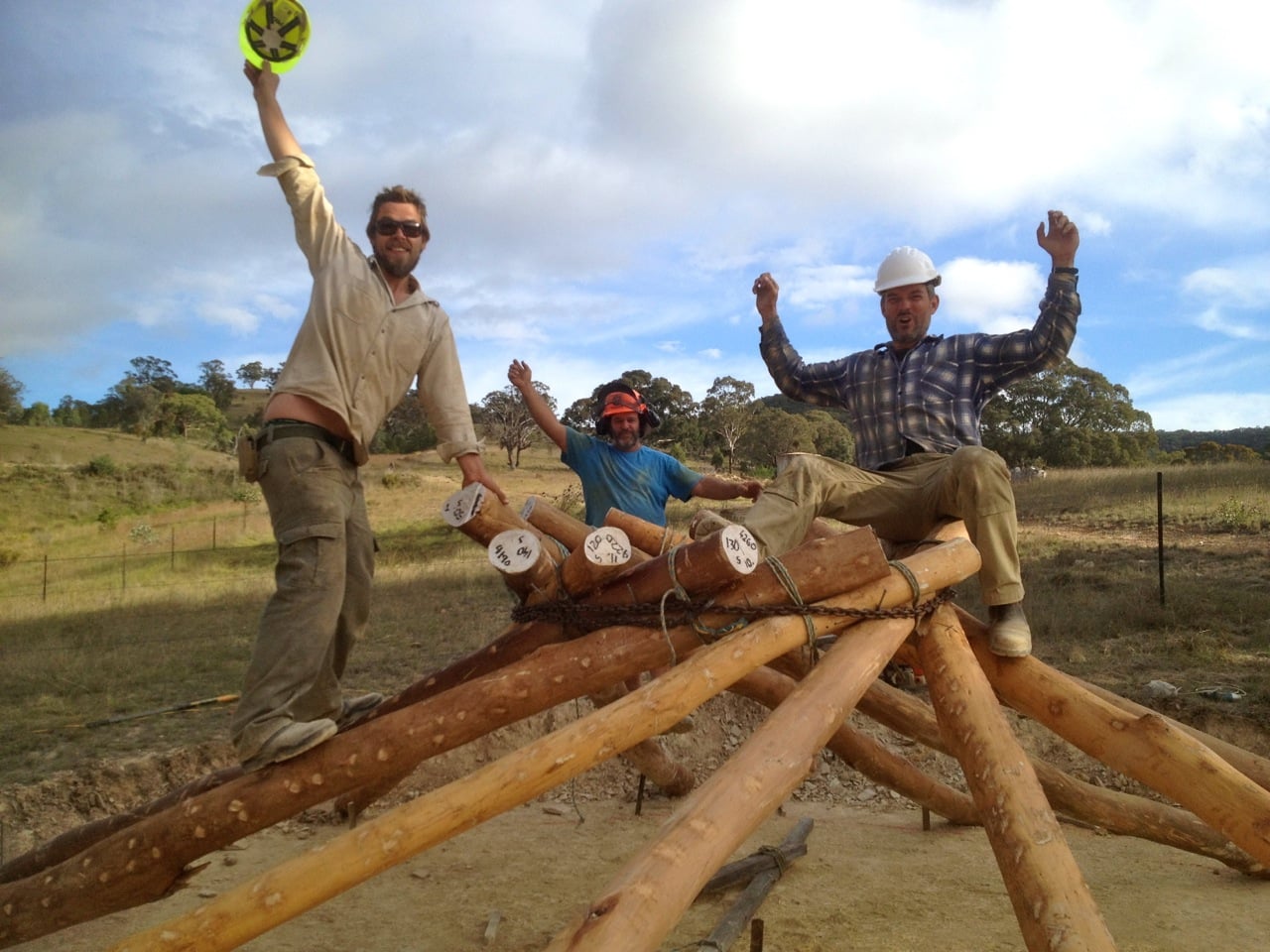

And it's weight bearing and performing as it should! Huzzah!

And it’s weight bearing and performing as it should! Huzzah! Now take it apart again until we do it for real…

One of the advantages of a reciprocal roof frame is that you can use roundwood timbers to make it. This can be a big advantage if you have acces to young trees (or bamboo) for polewood, but no access to milled timber.

The theory of how to build a reciprocal roof is fairly straight forward. To learn what we needed to know, we prettymuch just watched videos of Tony Wrench, who is both very experienced and eloquent in the ways of describing how the heck to build there things.

The video which helped us most was this one:

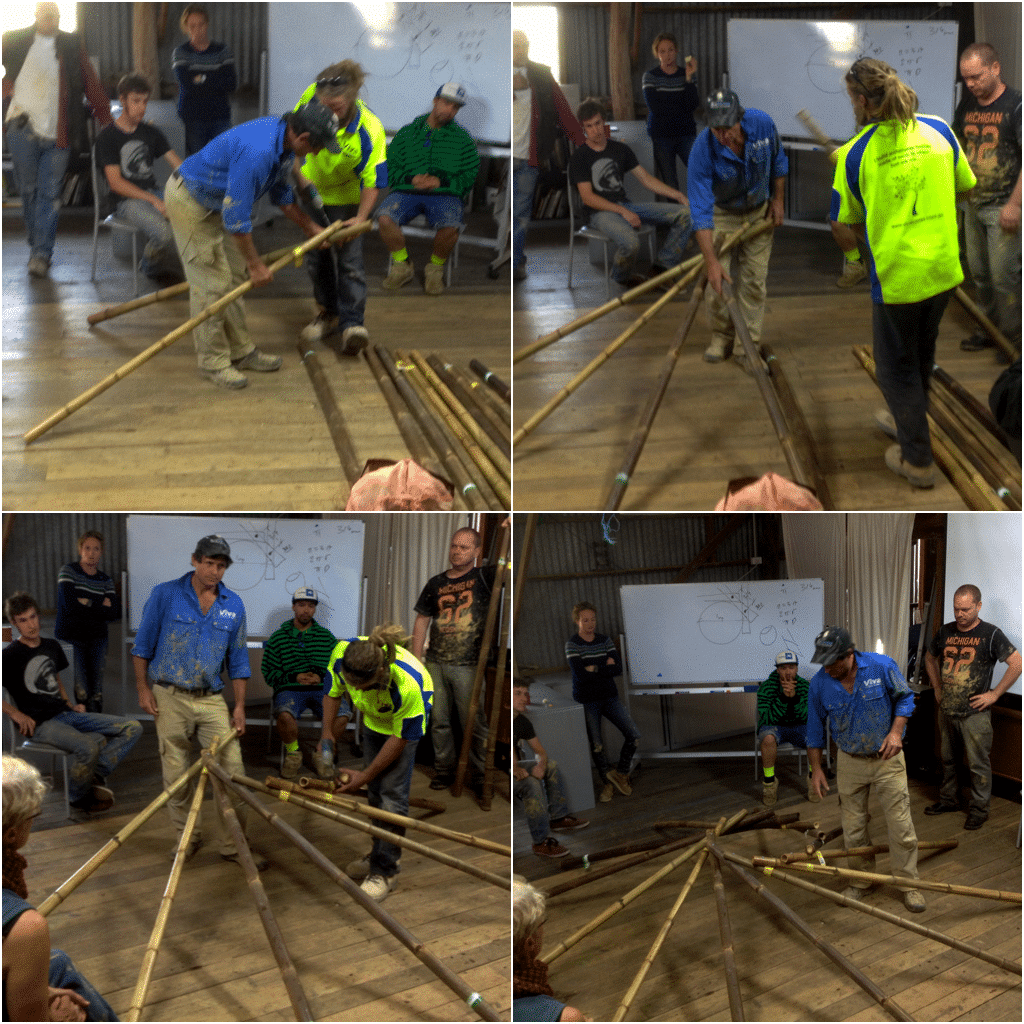

If you can, it’s a good idea to practice with some lightweight material (we used bamboo) if you want to understand this process before doing it for real…

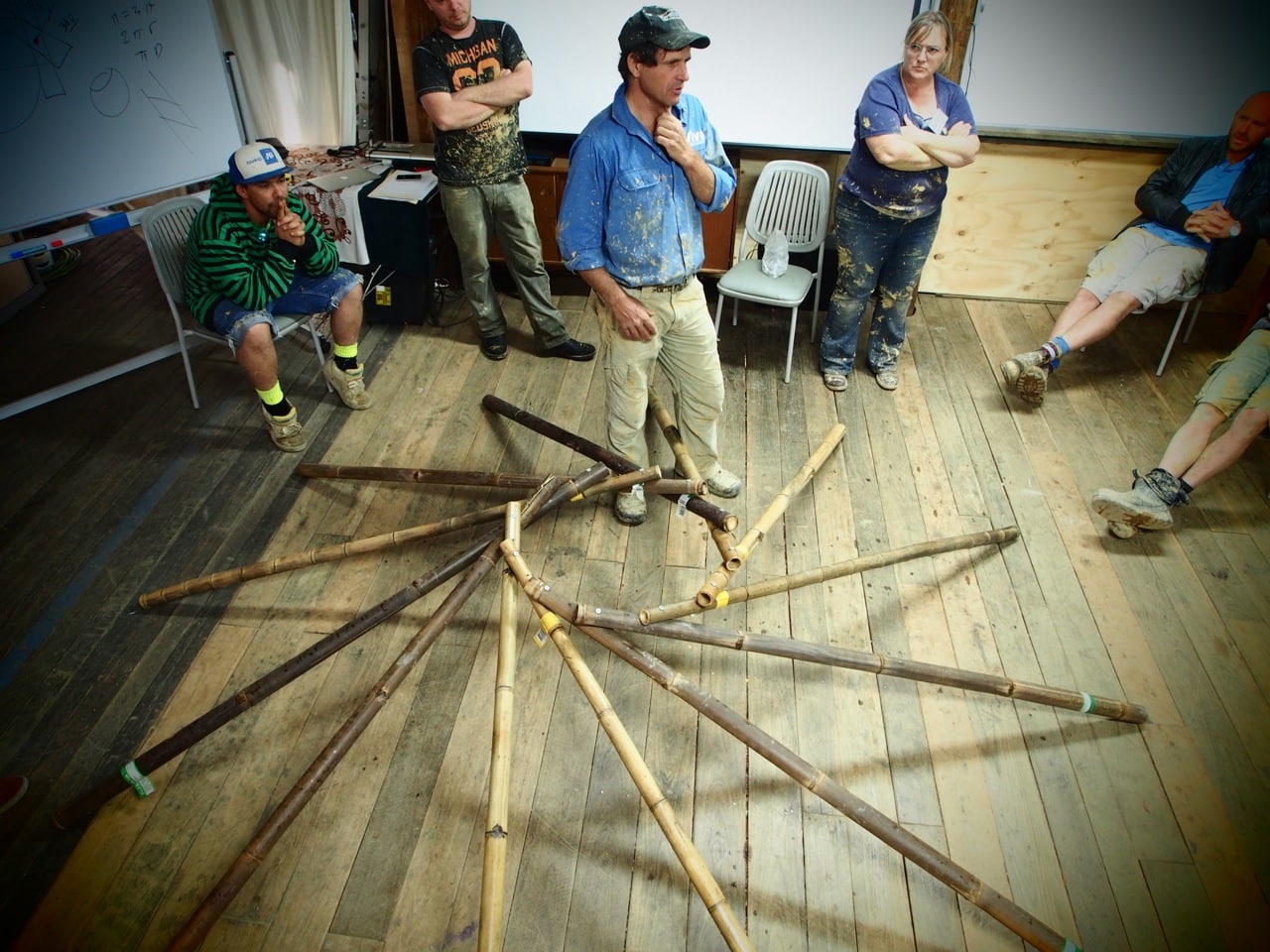

sam reciprocal

OLYMPUS DIGITAL CAMERA

And with that demonstration from Sam Vivers, we were off to do the real thing, using green eucalypt ‘bush poles’…

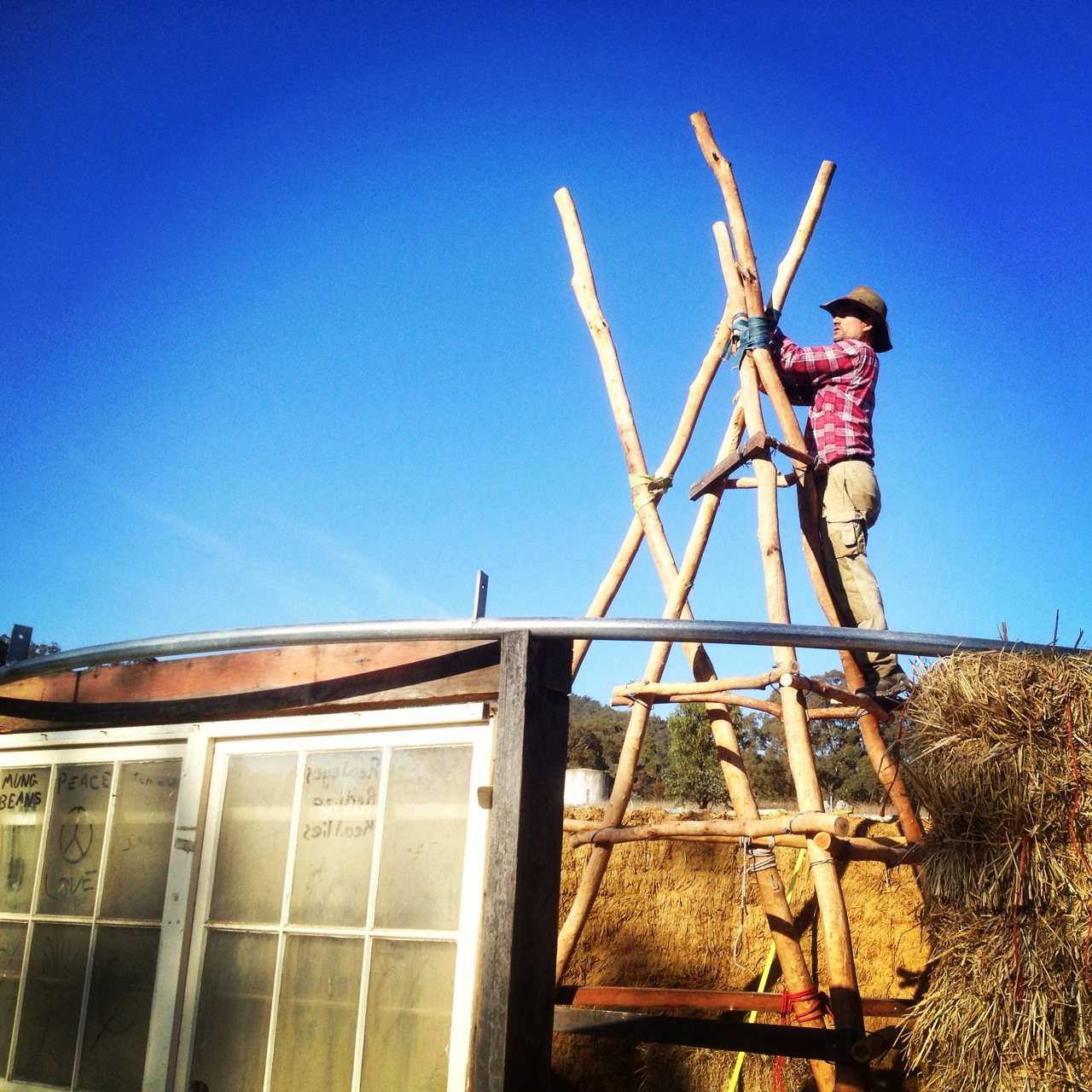

Nick finishing off the tripod that will support the first number of beams until they become self-supporting

Nick finishing off the tripod that will support the first number of beams until they become self-supporting

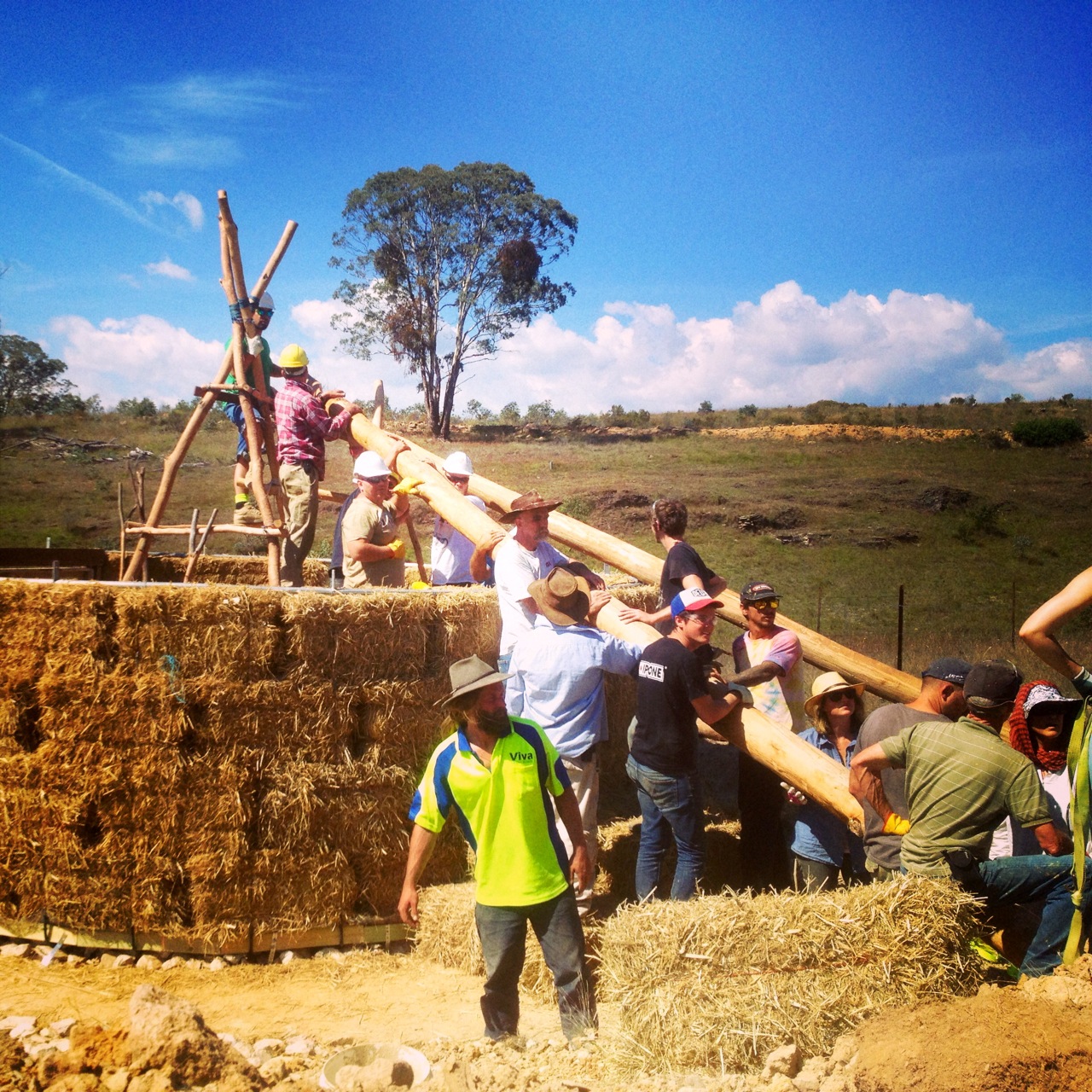

And off we go...

And off we go…

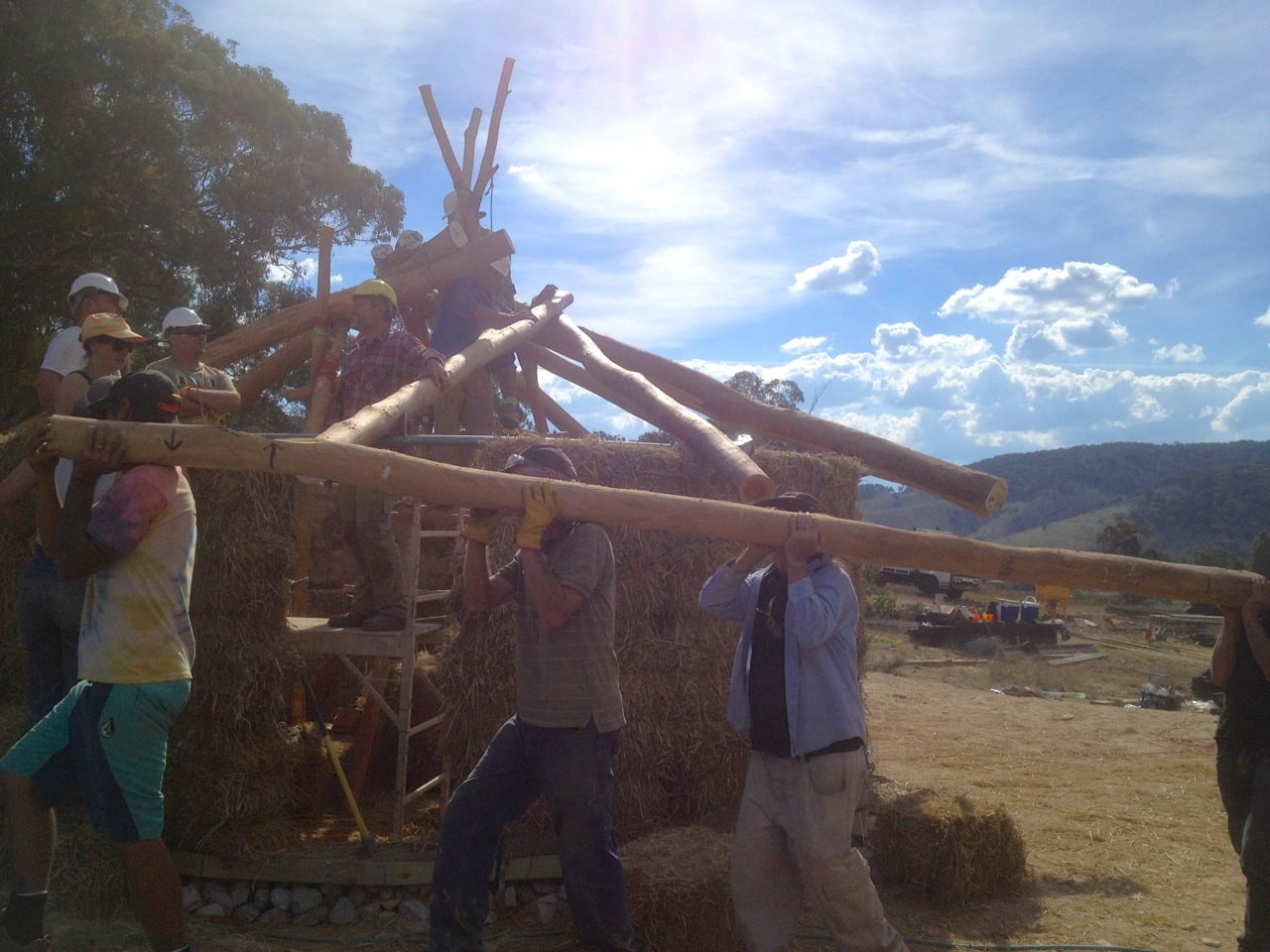

1307 reciprocal roof - 15

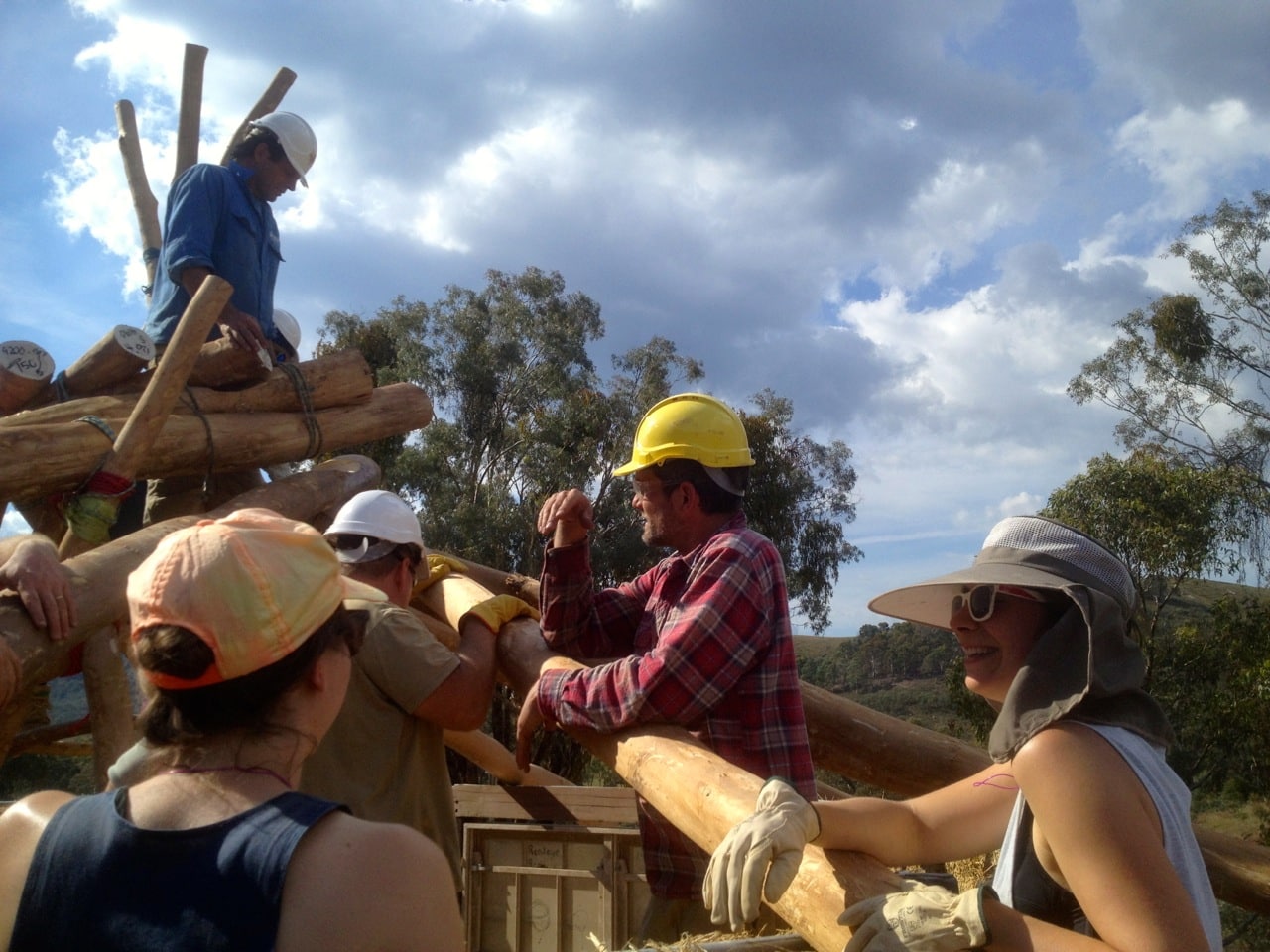

1307 reciprocal roof - 16

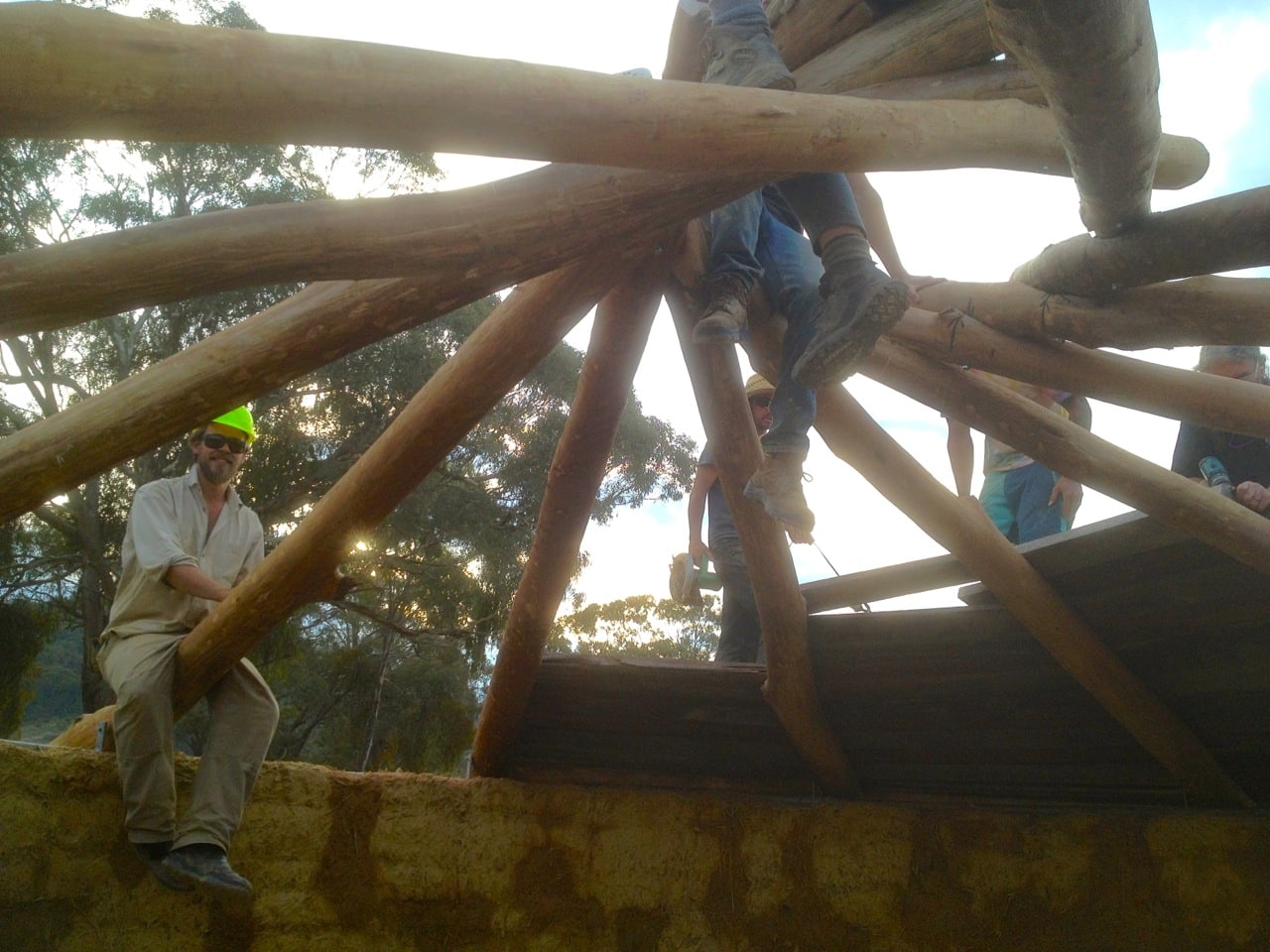

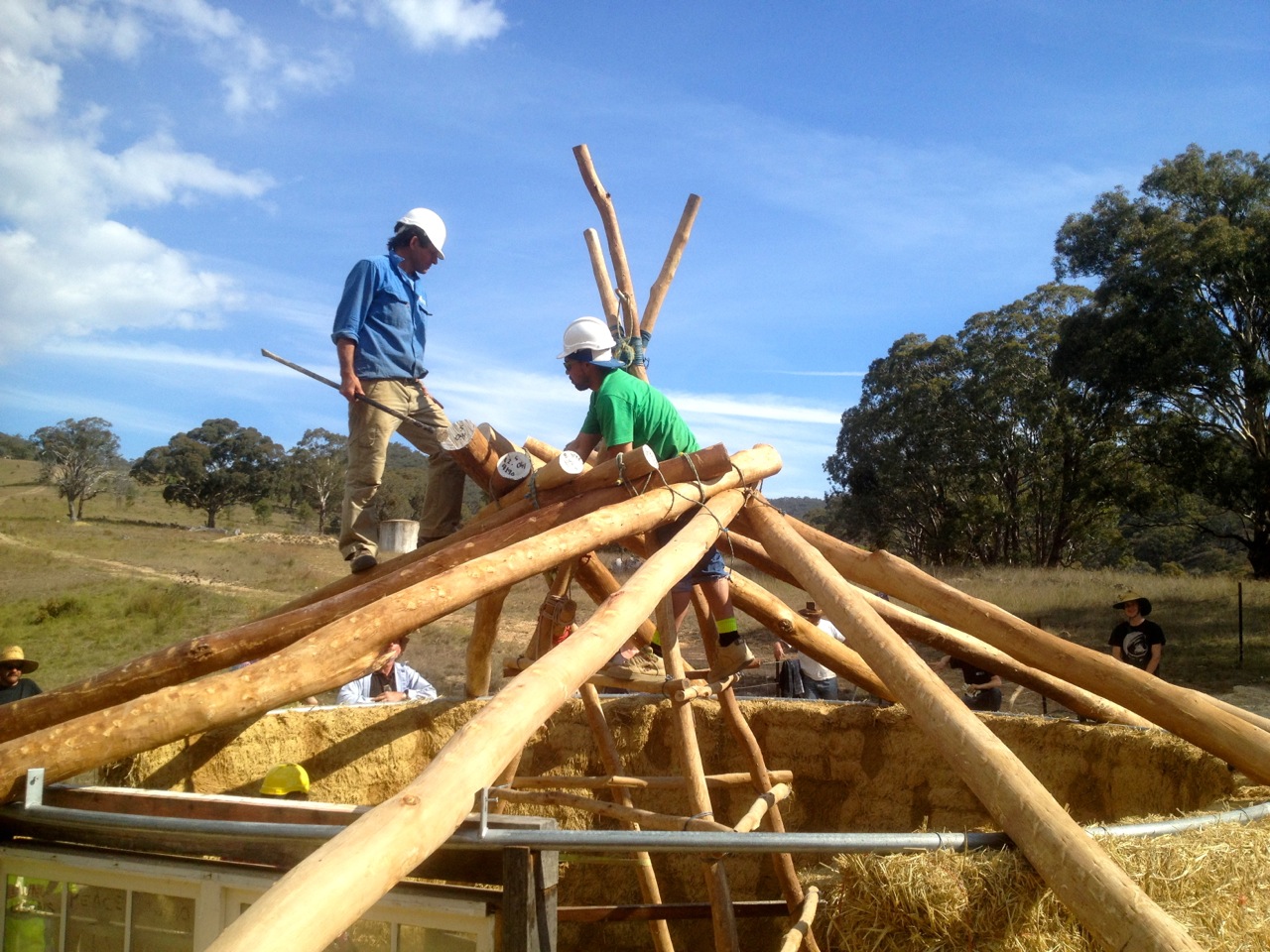

Sam Vivas 'persuading' all the beams into their rightful and relative places...

Sam Vivers ‘persuading’ all the beams into their rightful and relative places…

Last one goes into place... heave ho.

Last one goes into place… heave ho.

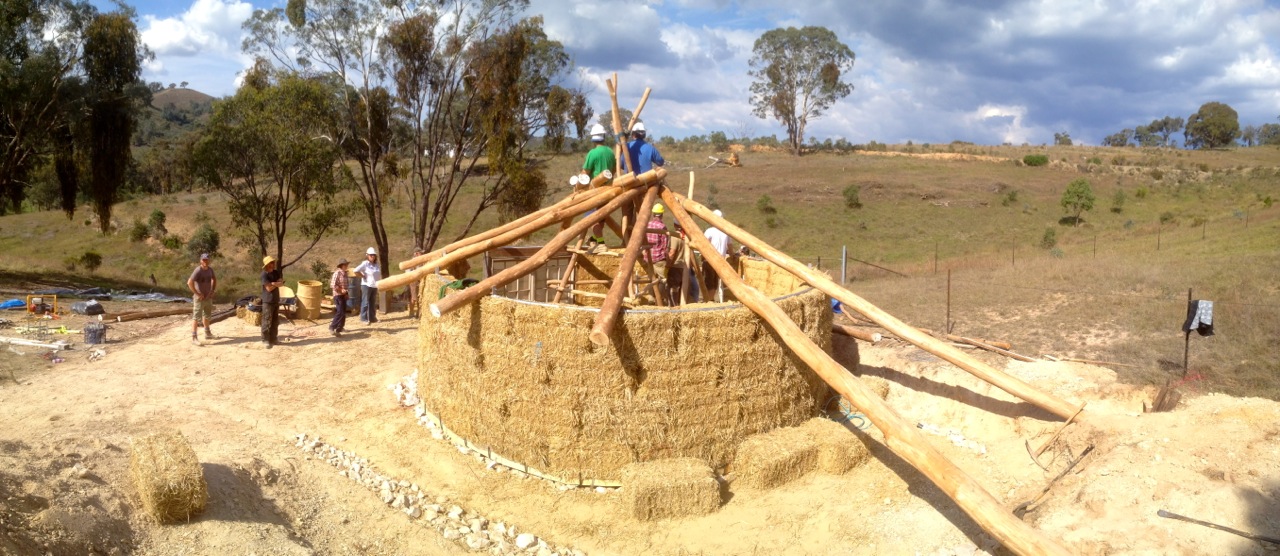

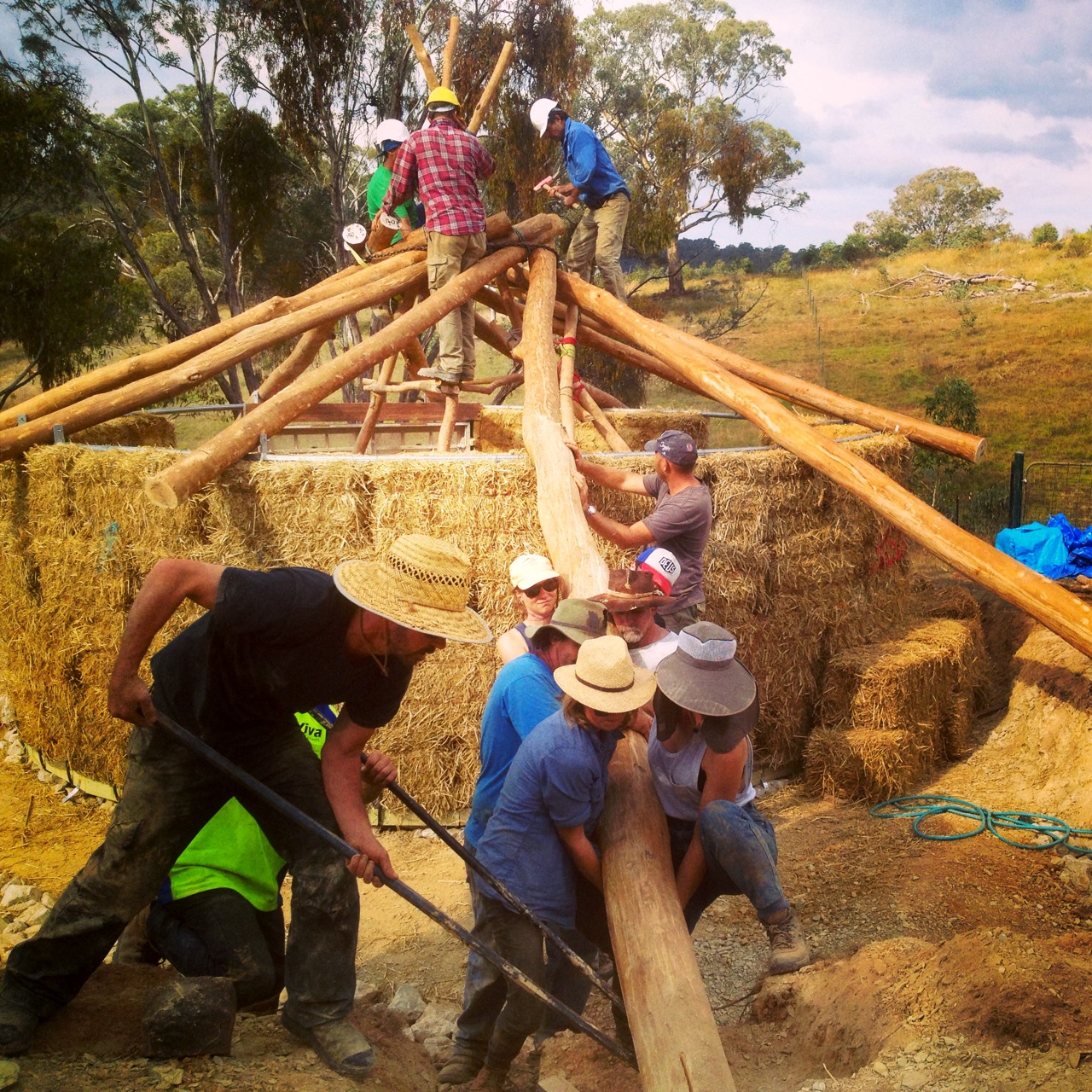

The frame is up! The two extra long beams that come down to ground level are to create a undercover 'lean to' at the back of the building

The frame is up! The two extra long beams that come down to ground level are to create a undercover ‘lean to’ at the back of the building

We attached these poles to each other with rope firstly, and a chain around the whole thing to be extra safe. Once everything was in place, the timbers were secured with bolts.

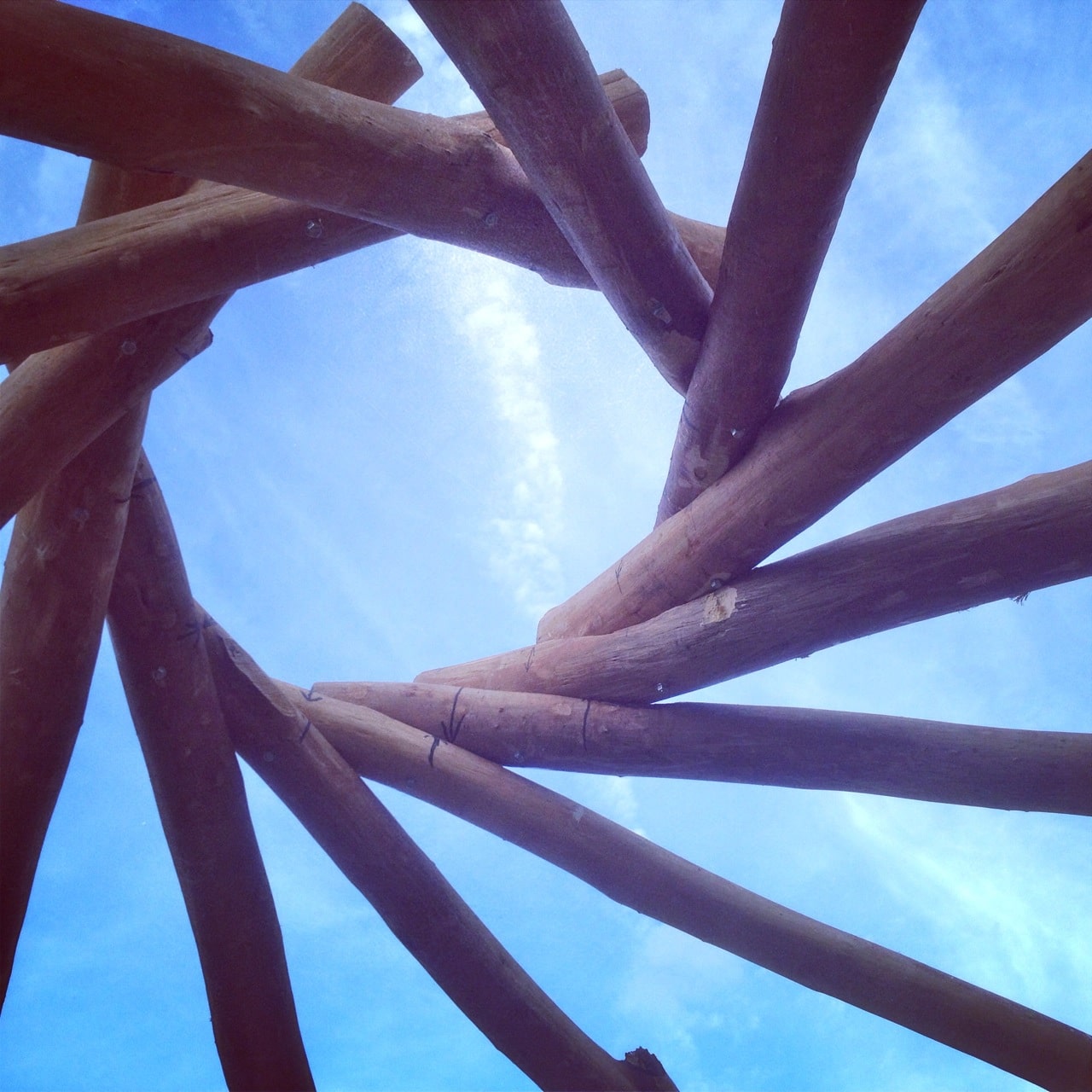

1307 reciprocal roof - 20

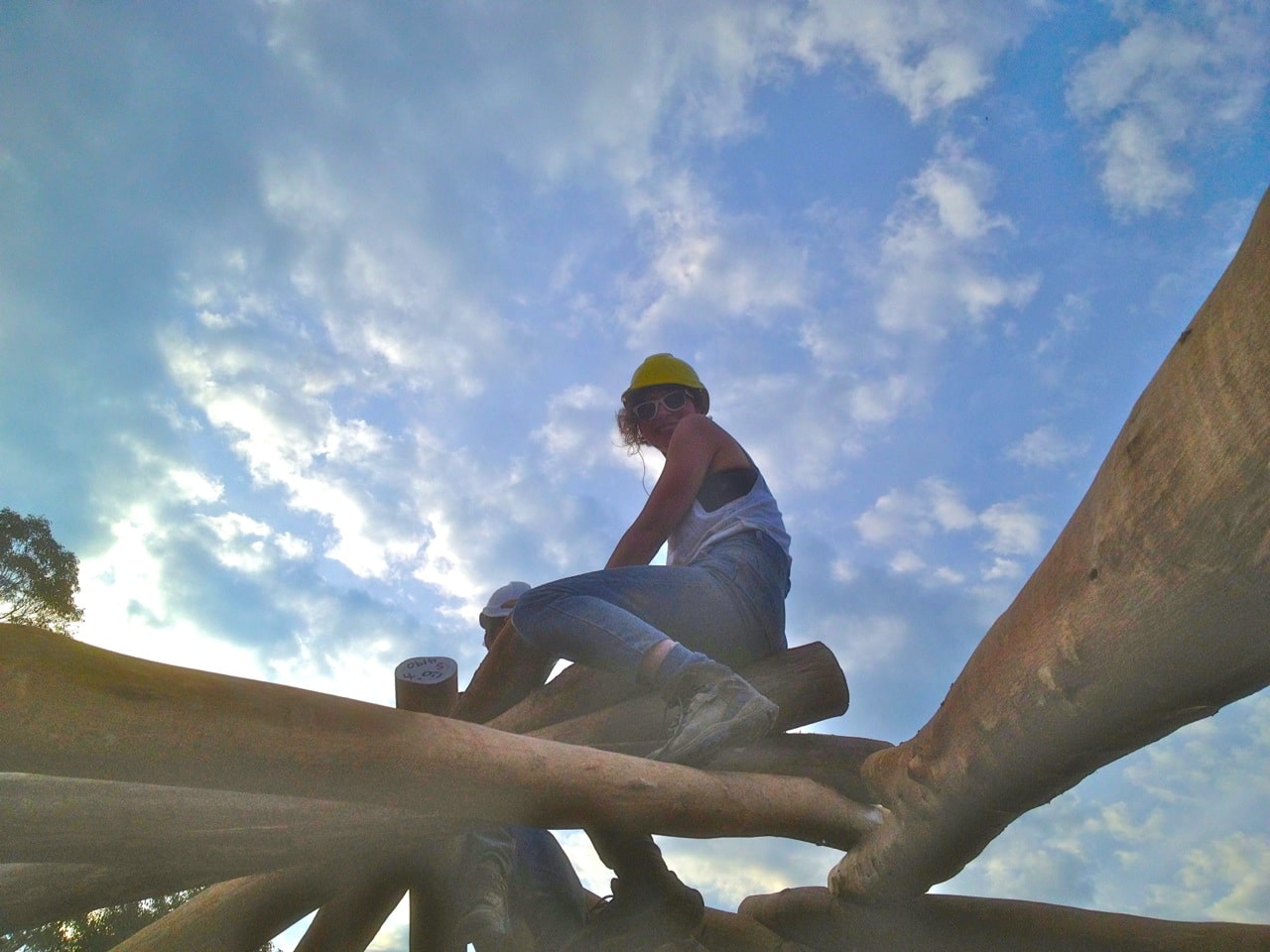

1307 reciprocal roof - 21

Next up, time for cladding. This will eventually be a living roof with a meadow growing on it, But there’s a bit of work between here and there. We clad the frame with hardwood floorboard offcuts, which will then form the internal ceiling.

Above that will go insulation, waterproof membrane, soil and plants. All resting on a very strong, self supporting, roundwood reciprocal roof…

See here for the building history of this roundhouse to date.

Floyd oversees the beginning of the ceiling cladding

Floyd oversees the beginning of the ceiling cladding

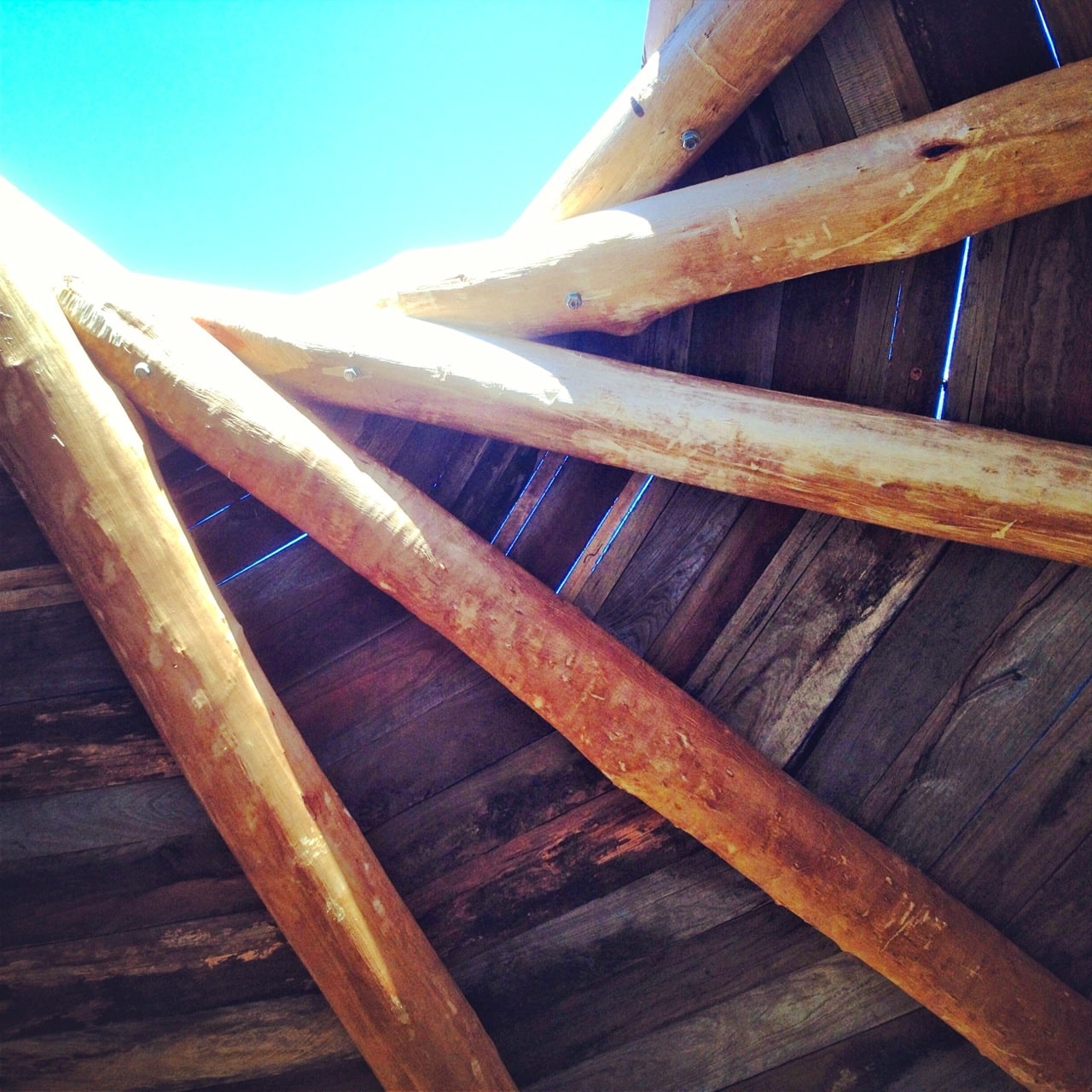

The hardwood cladding, that provides the base for the living roof on top, and the ceiling beneath…

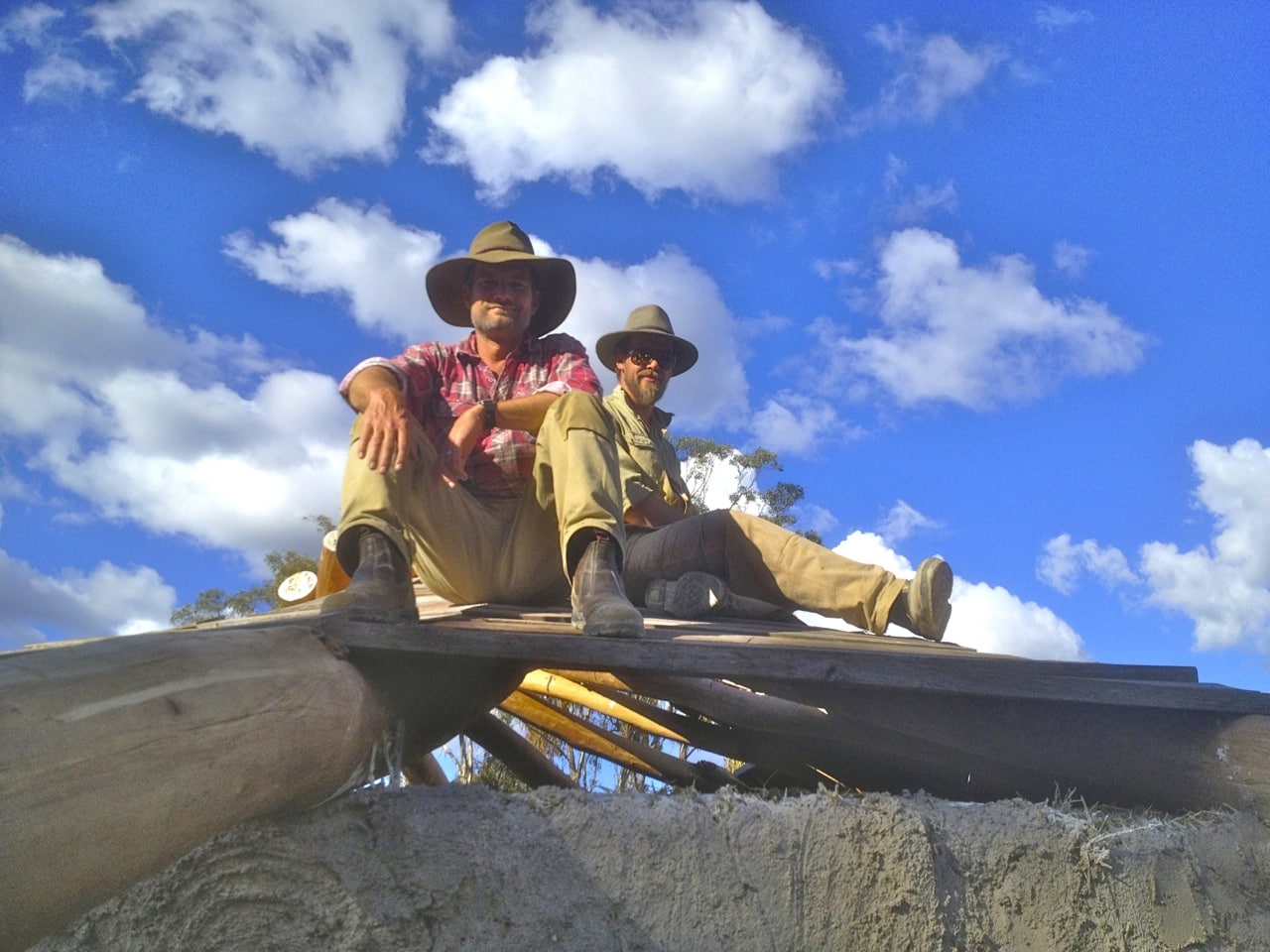

Nick and Floyd take a breather

Nick and Floyd take a breather

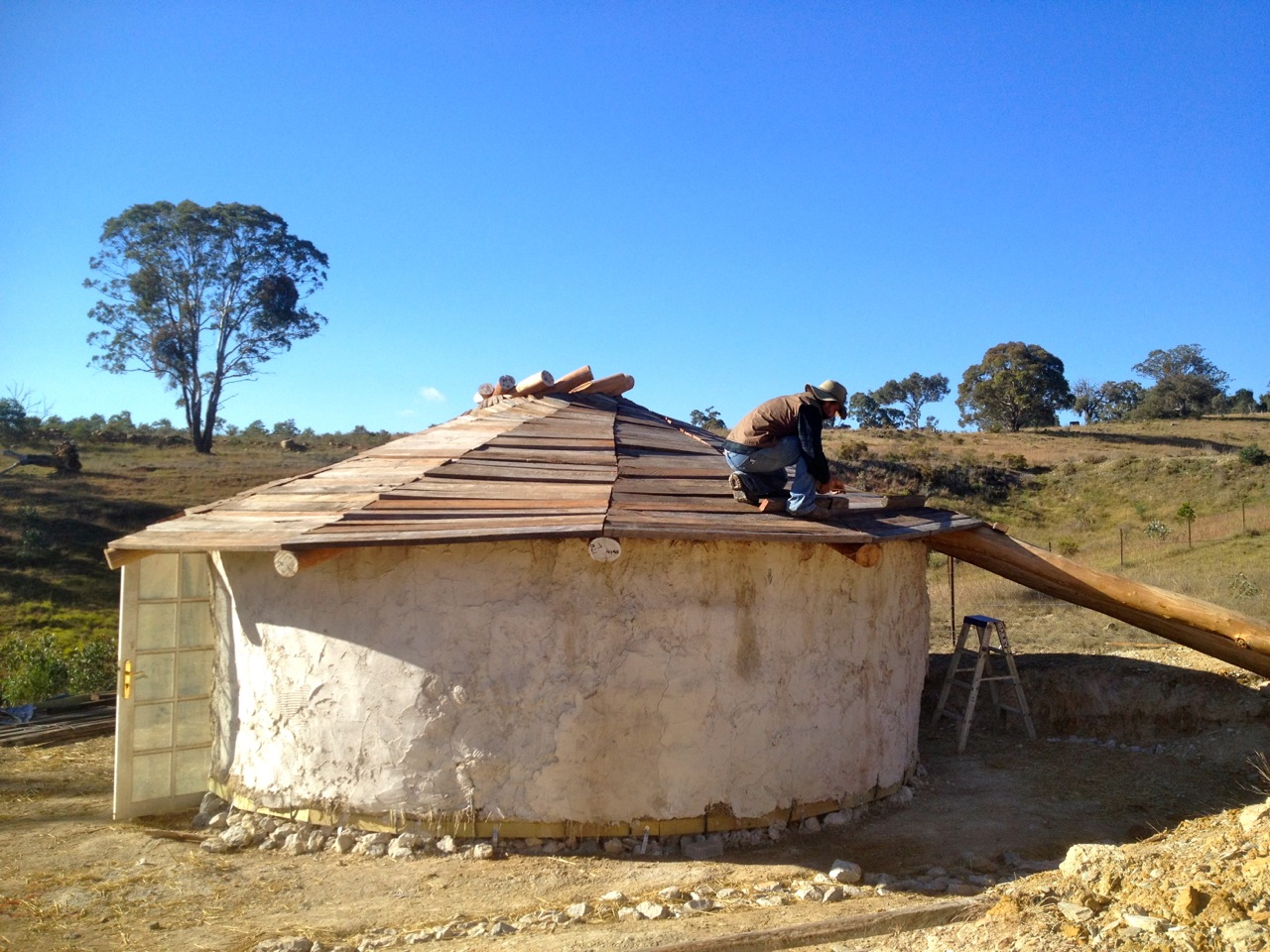

Shane finishing off the cladding

Shane finishing off the fiddly bits..

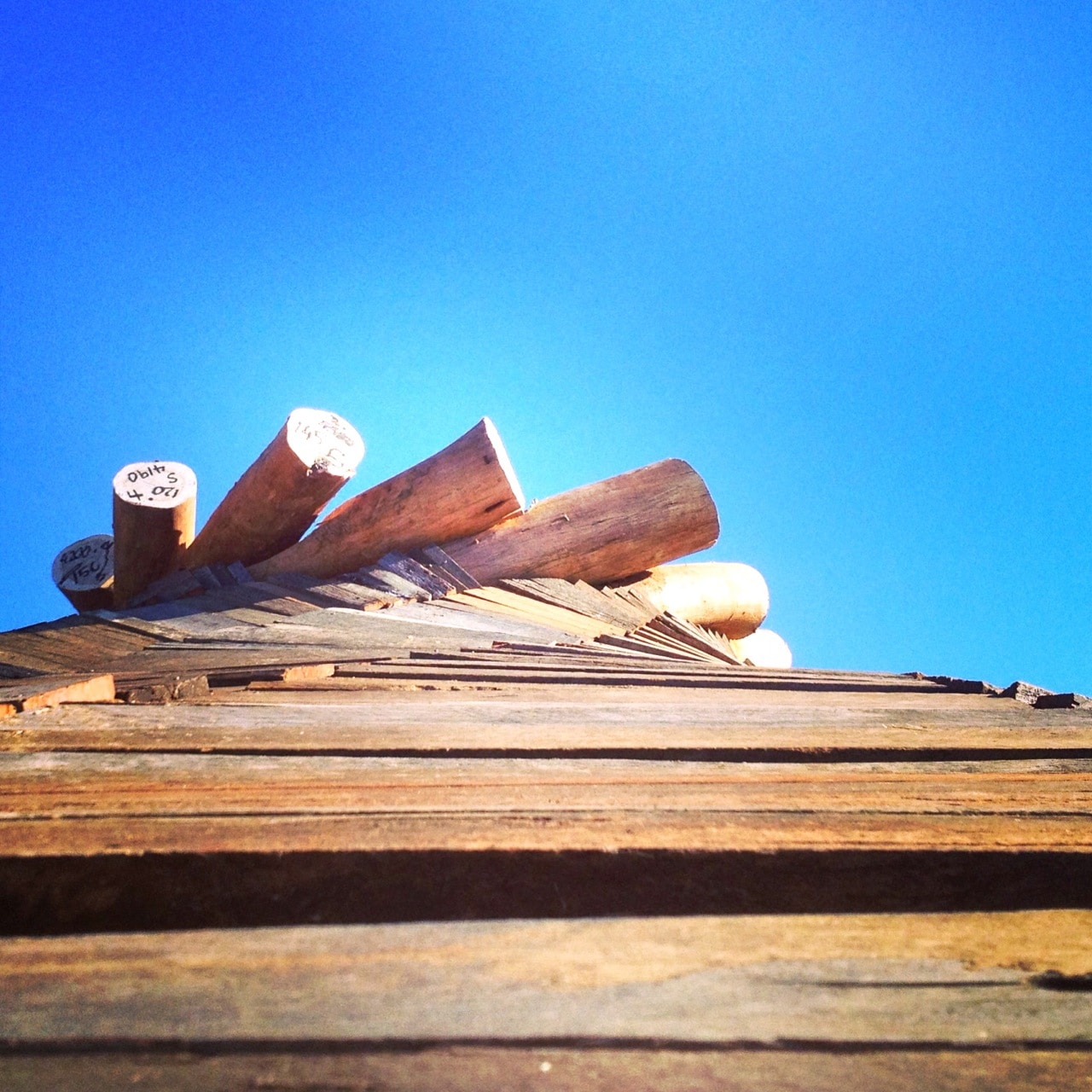

Seems almost a shame to overlay this beautiful wooden form with other things... but the living roof will be worth it.

Seems almost a shame to overlay this beautiful wooden form… but the living roof will be worth it.

Our next Natural Building workshop is coming up in September at Milkwood Farm.

It’s an intensive, hands-on four day workshop for anyone who is dreaming of building their own earth friendly home. Learn how to build with a variety of natural building techniques: light earth, strawbale, cobb, roundwood timbers, reciprocal roofs, lime and mud renders and more.

>> More posts about Natural Building here…

Big cheers and thanks to Sam Vivers and to all who contributed their energy to this build, and to Floyd for most of the photos above.
