Roundhouse build: foundations and walls

Ta da!

A few months ago we raised a strawbale roundhouse with a reciprocal roof as part of our first Natural Building Workshop at Milkwood Farm.

Now that we’re nearing the end of this build, I thought I’d step you through the process of raising this experimental building piece by piece. And as with all projects, the foundations came first. So let’s start there, shall we?

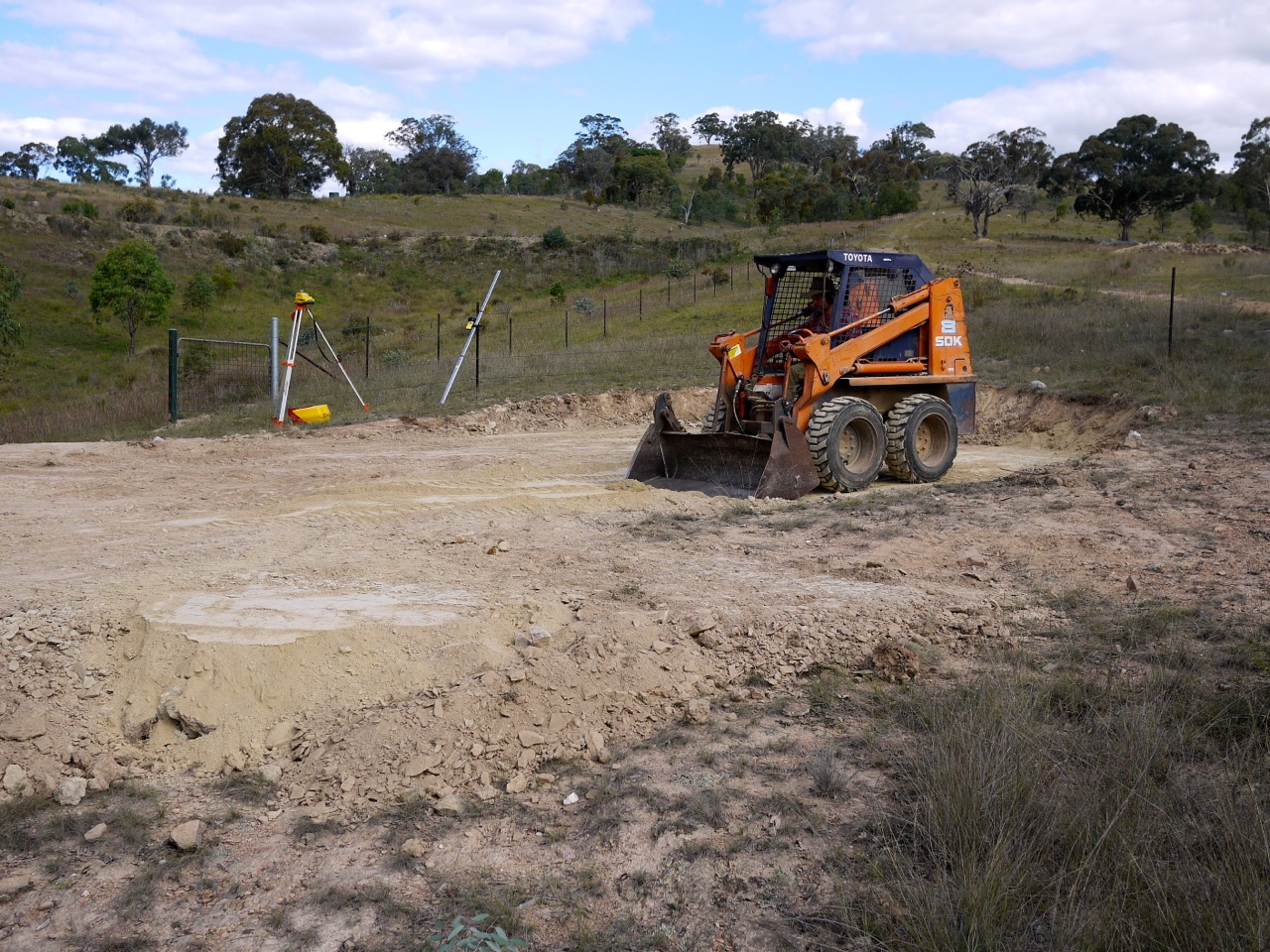

Nick clears and levels the site

Nick clears and levels the site

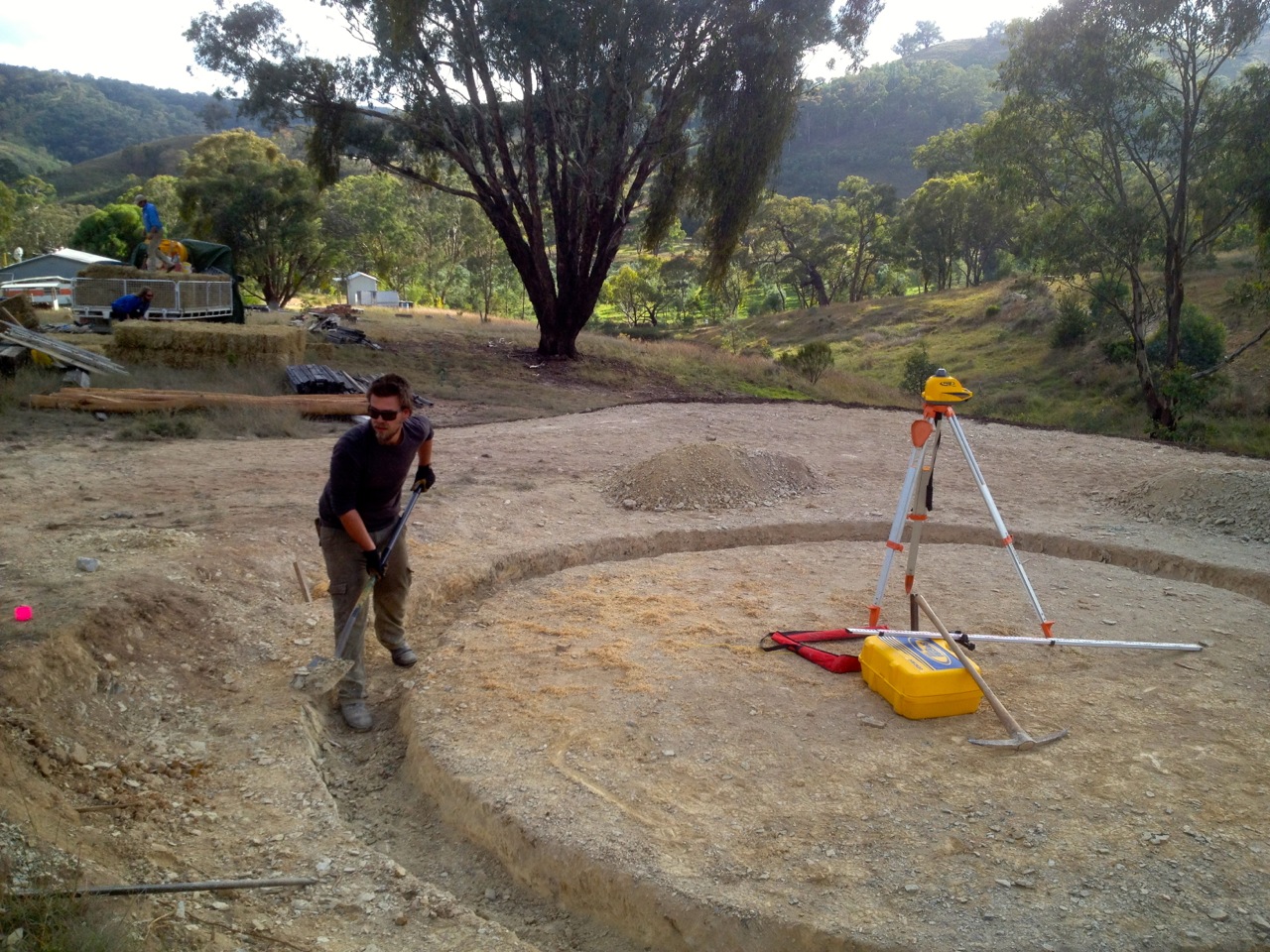

Floyd finishing off the foundation trench

Floyd finishing off the foundation trench

So the plan for this building was to build a 6m internal diameter roundhouse, with a focus on using as much simple natural materials as we could manage.

We seem to have now constructed an experimental building with load-bearing strawbale walls, natural mud and lime renders, doors and windows scrounged from junkyards and a living roof on top of a roundwood reciprocal roof frame.

But back to the start.  After the site was chosen, we mapped out where the door and windows would go in order to face due north, to maximise the ability of winter sunlight to penetrate the building and flood the interior earth floor, which will help to heat the space.

And then we got building, under the watchful eye and hard-won experience of Sam Vivers, a master builder who works with wood and mud and clay and straw.

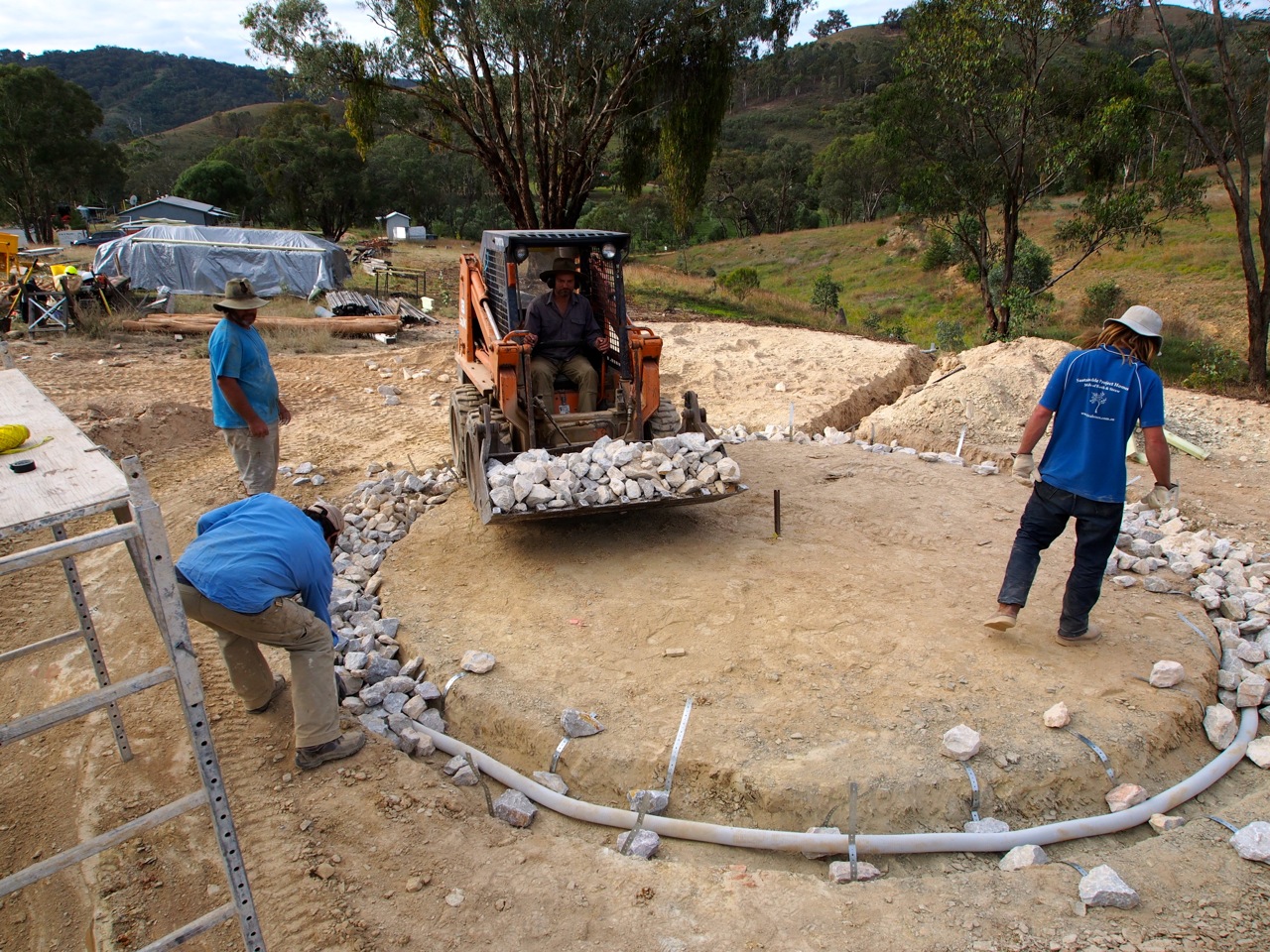

Foundations going in - a french drain to carry water away, with rubble footings ontop

Foundations going in – a french drain to carry water away, with rubble footings ontop

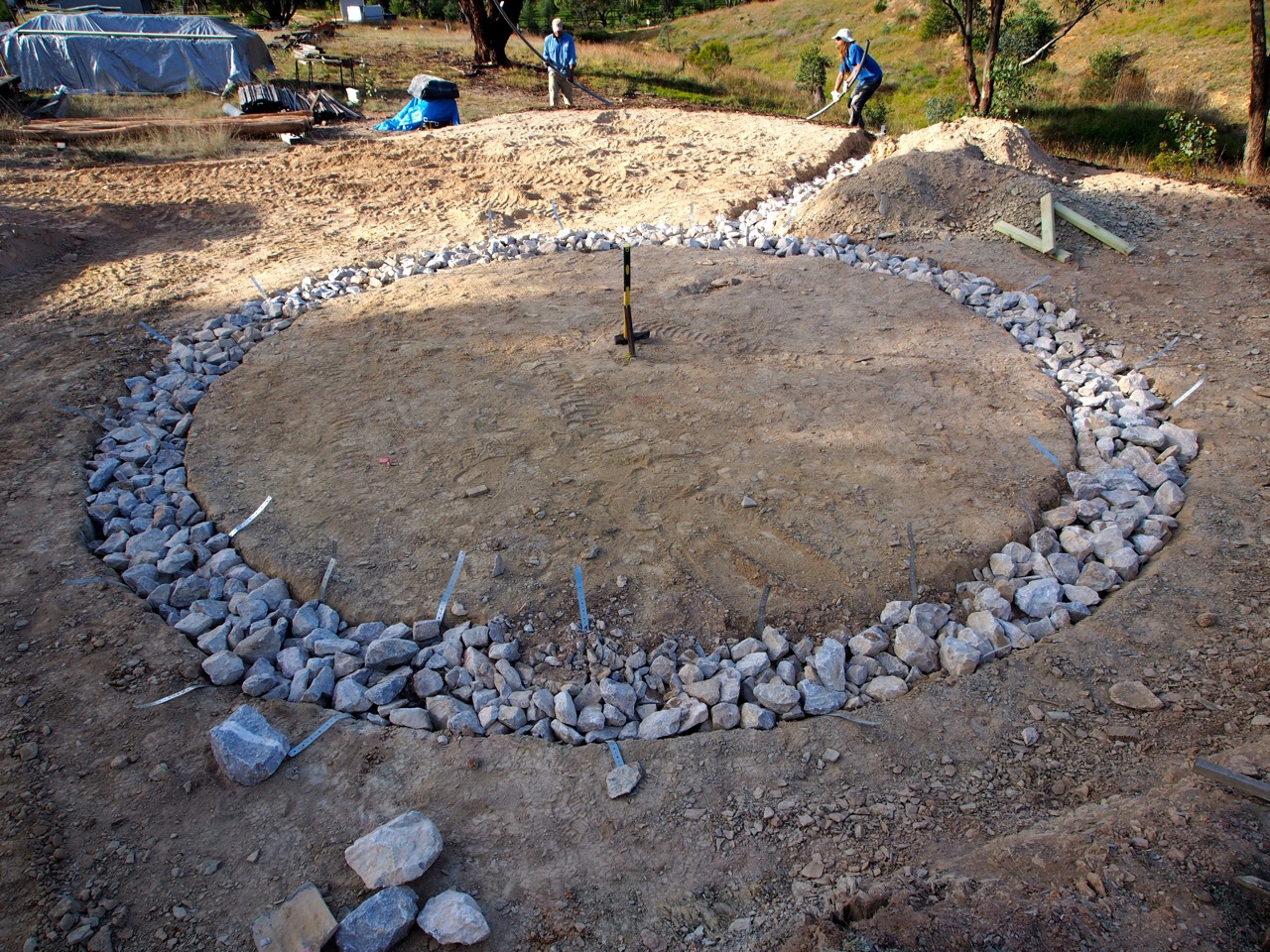

Rubble footings done - the strips of metal coming out will wrap around the wooden bottom plates of the walls

Rubble footings done – the strips of metal coming out will wrap around the wooden bottom plates of the walls.

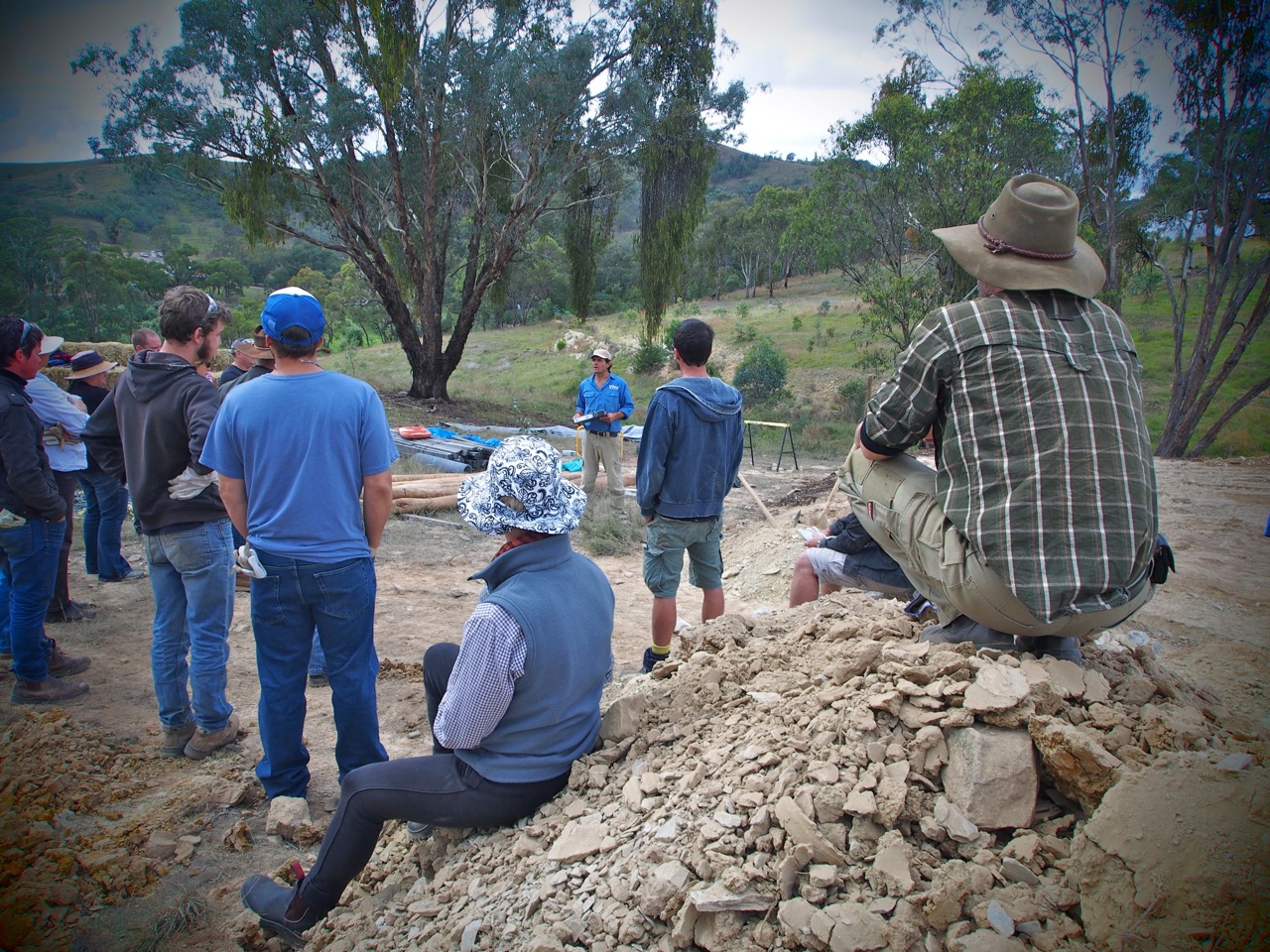

Natural Building Workshop time...

Natural Building Workshop time…

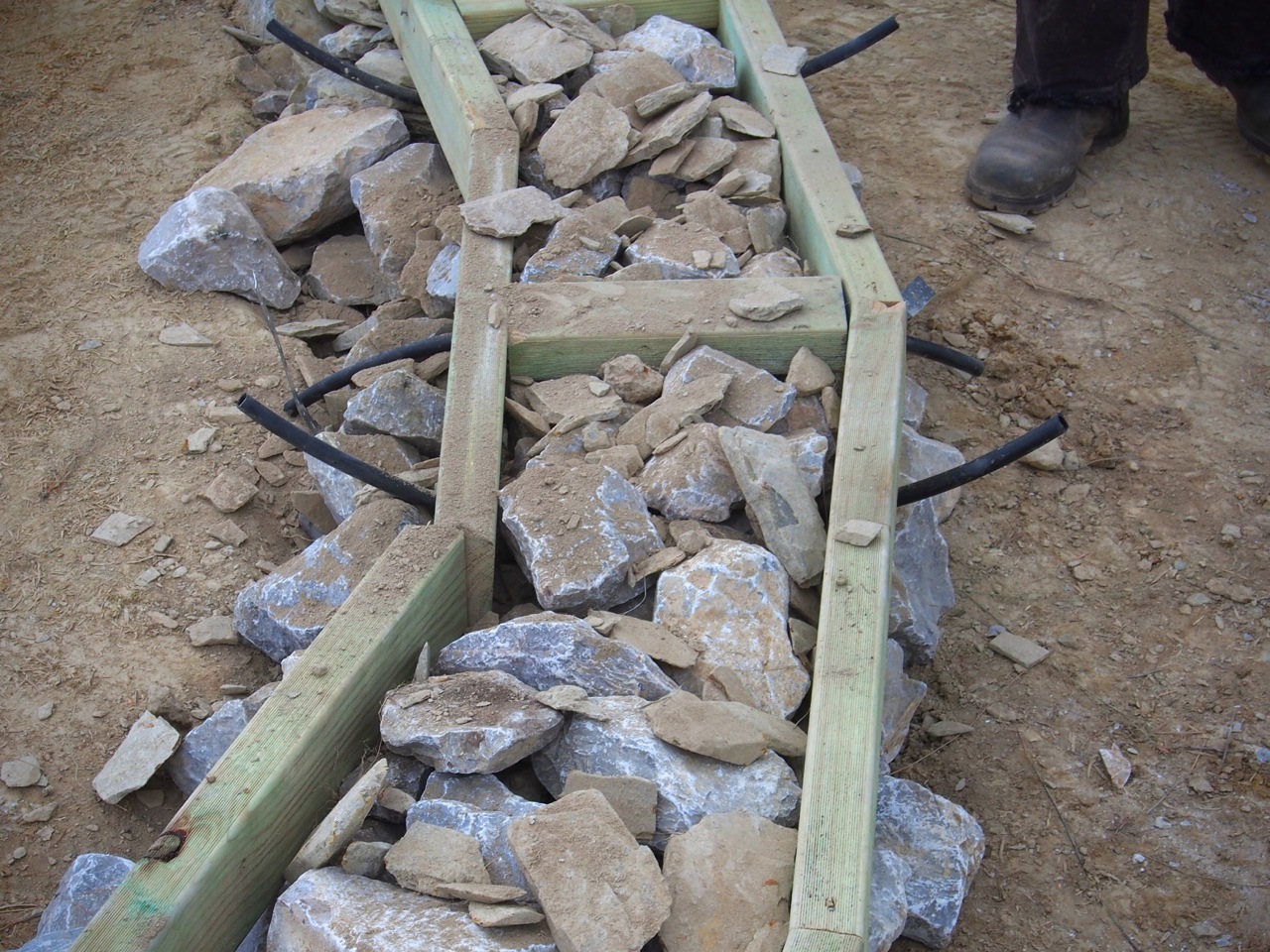

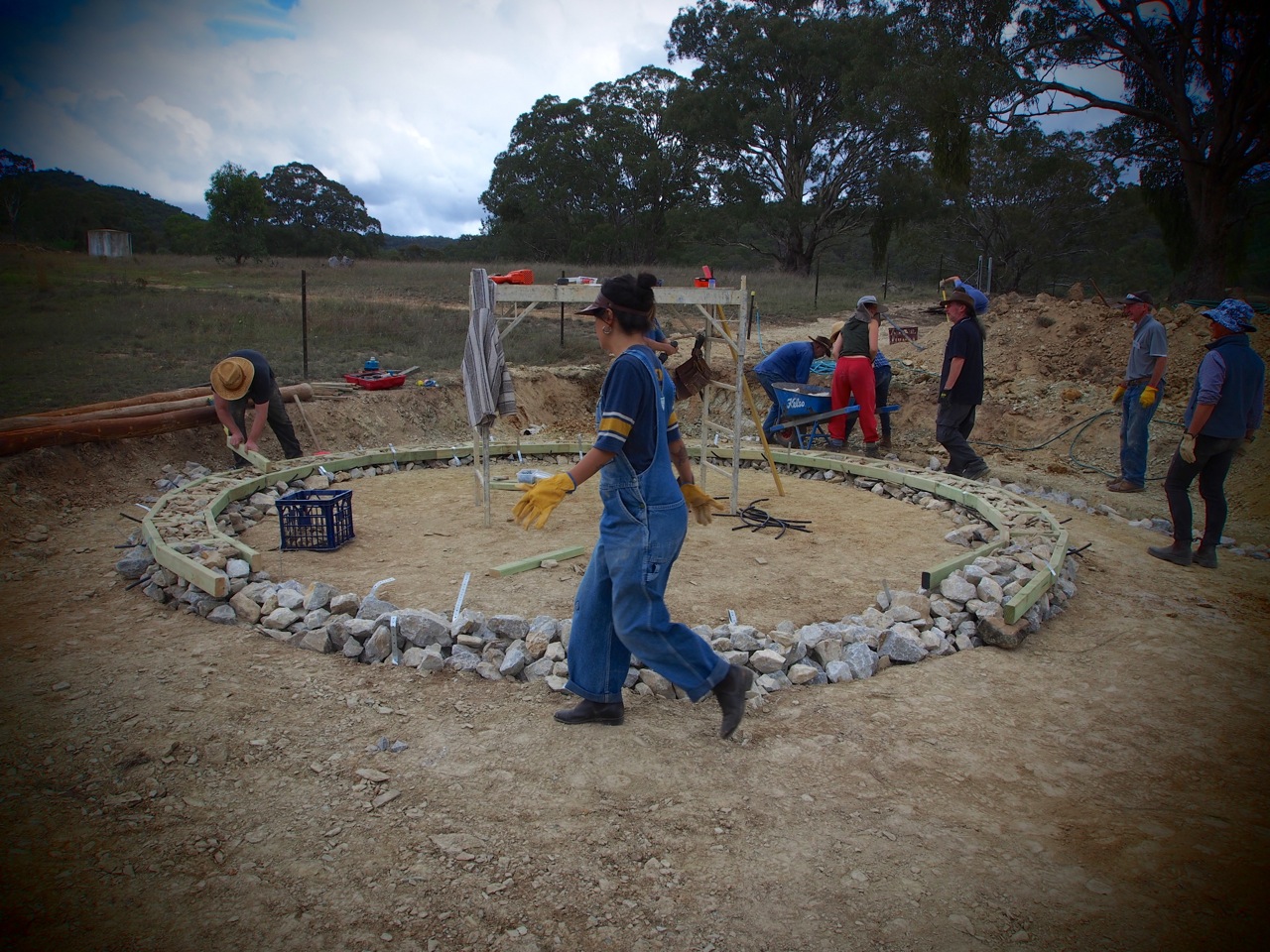

Laying the baseplates for the strawbale walls

Laying the baseplates for the strawbale walls

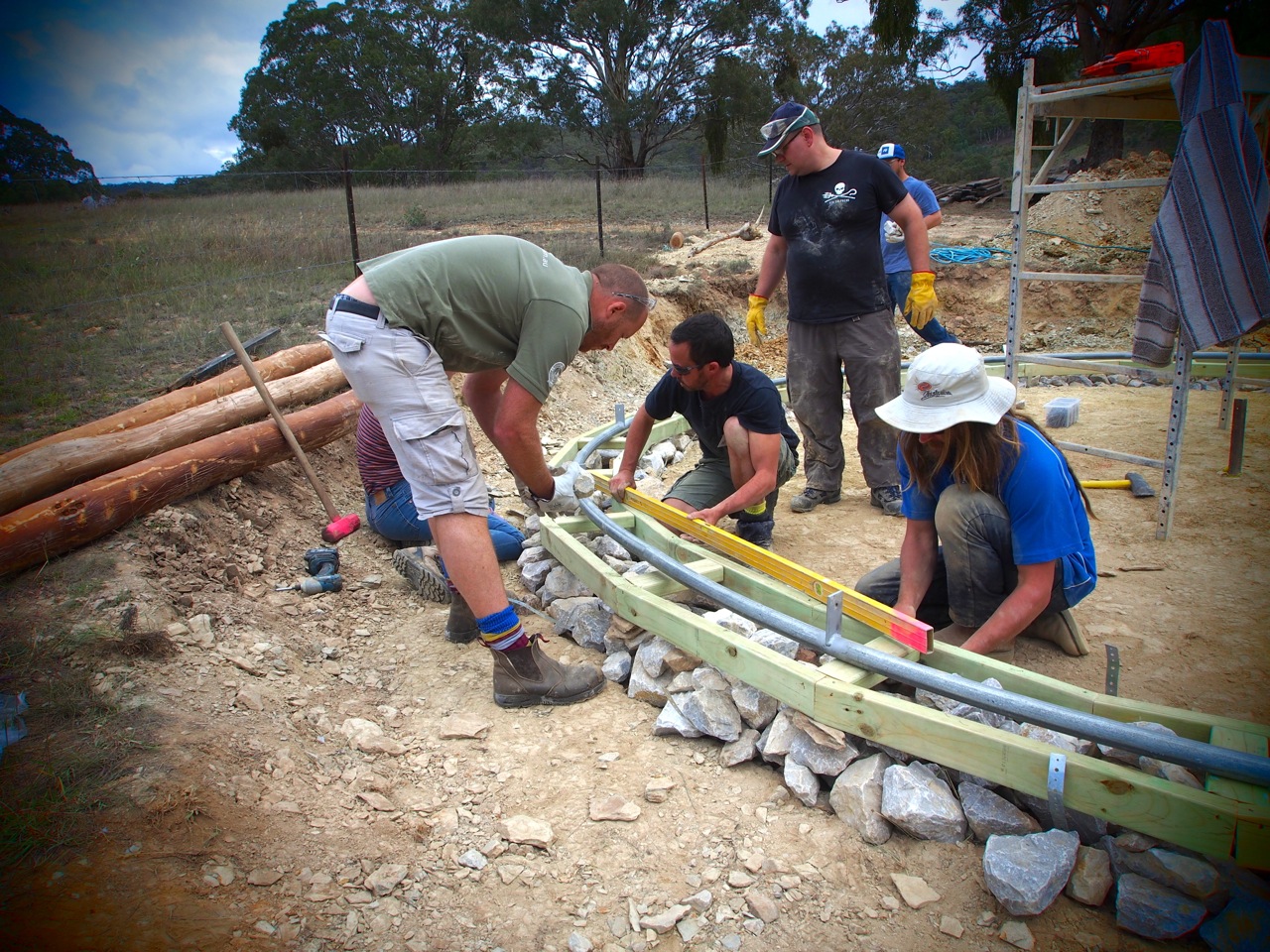

The black pipes (old irrigation line) will allow us to thread tensioning wire under the baseplates

The black pipes (old irrigation line) will allow us to thread tensioning wire under the baseplates

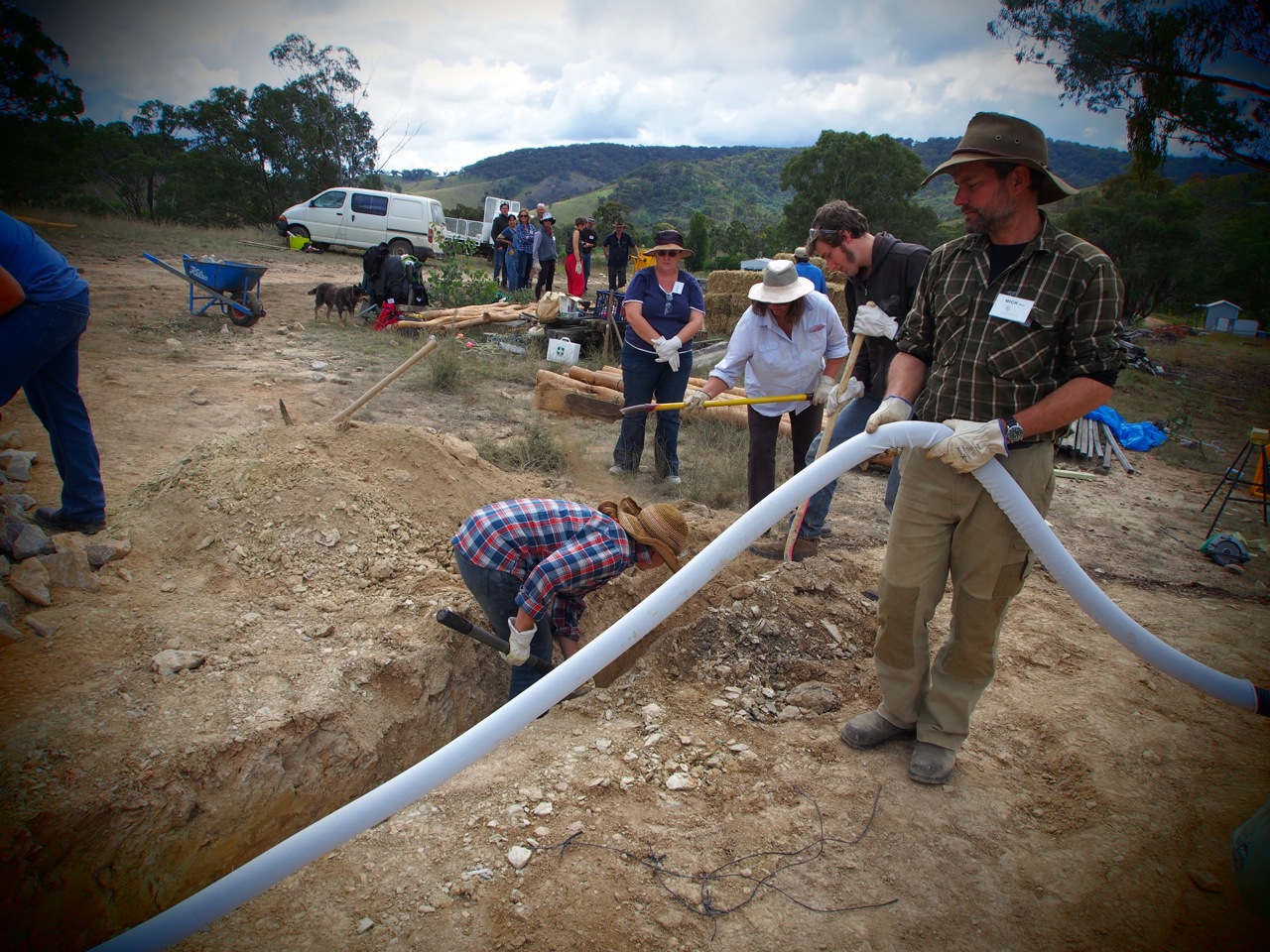

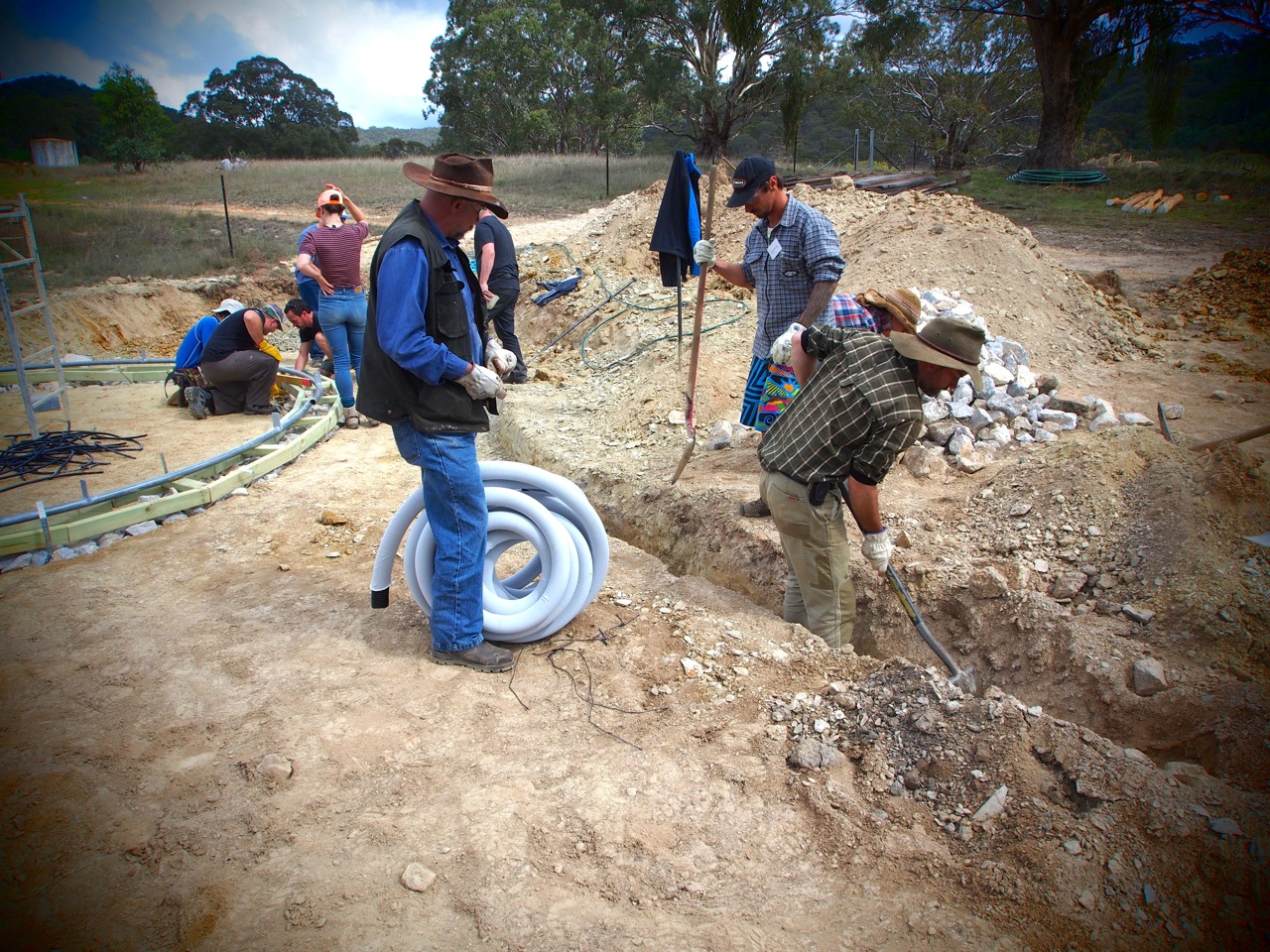

Time for the back french drain, to draw water away from the structure

Time for the back french drain, to draw water away from the structure

OLYMPUS DIGITAL CAMERA

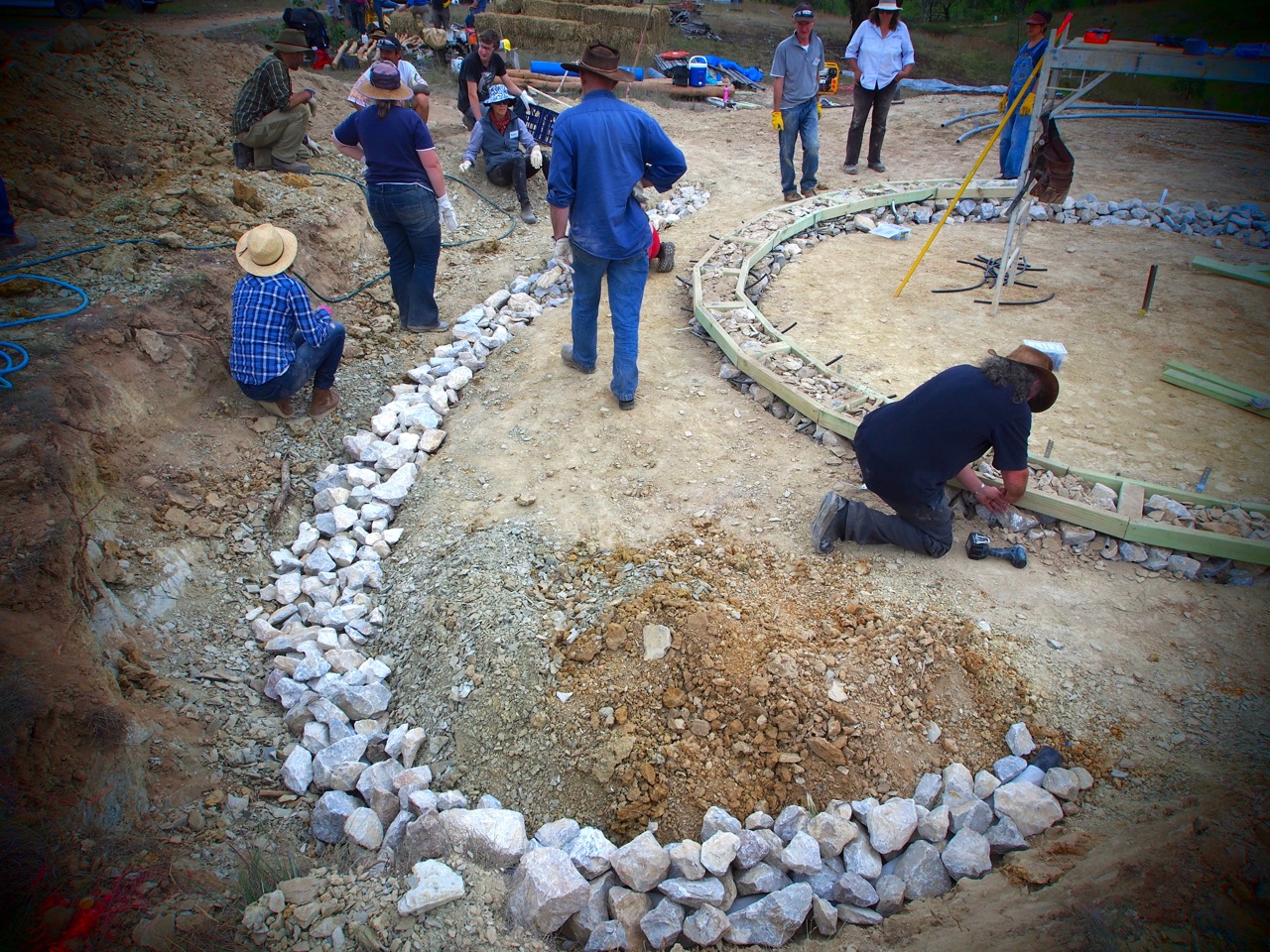

And that drain gets covered in rubble too...

And that drain gets covered in rubble too…

OLYMPUS DIGITAL CAMERA

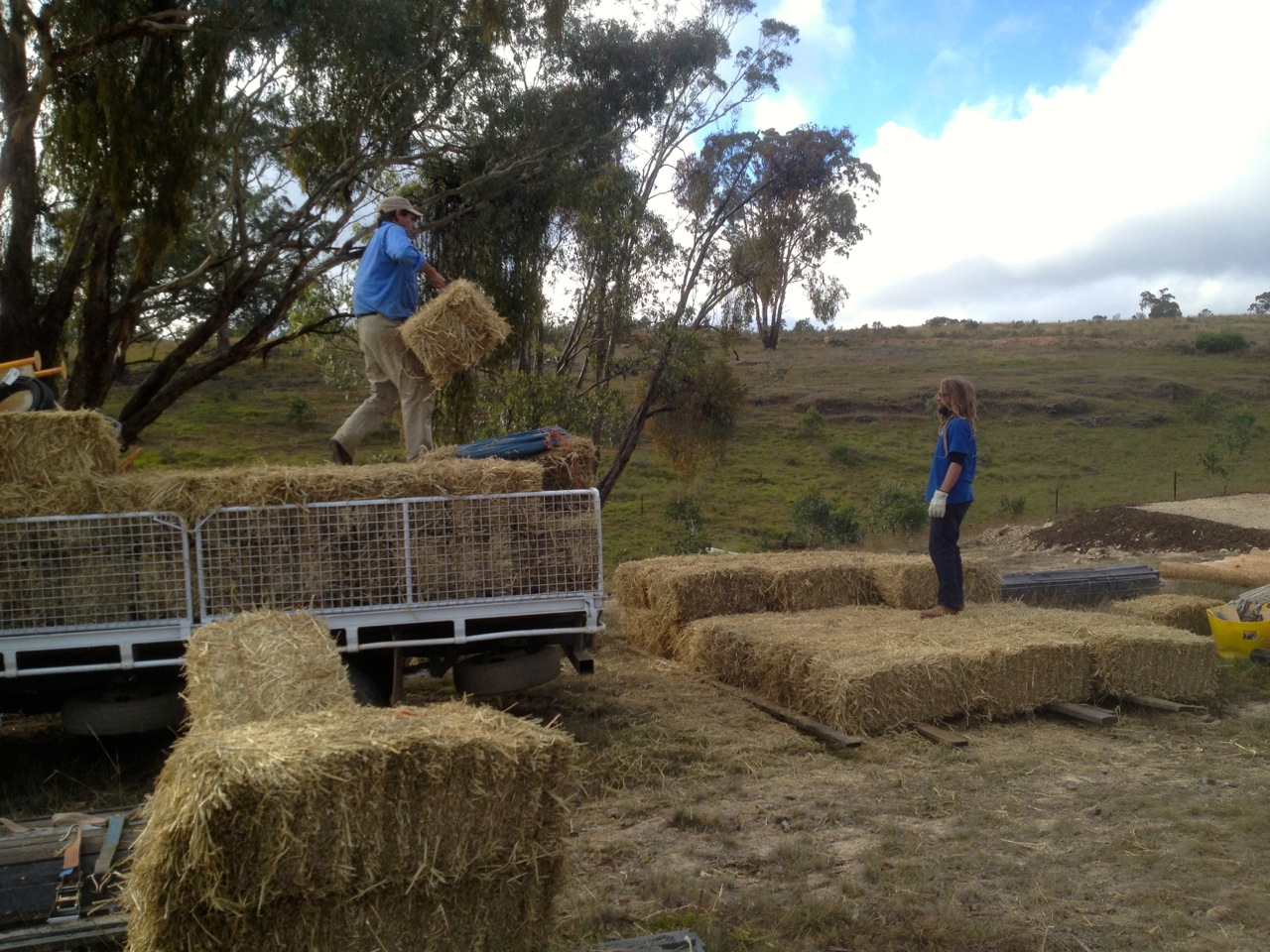

Sam and Owen unload the walls.

Sam and Owen unload the walls.

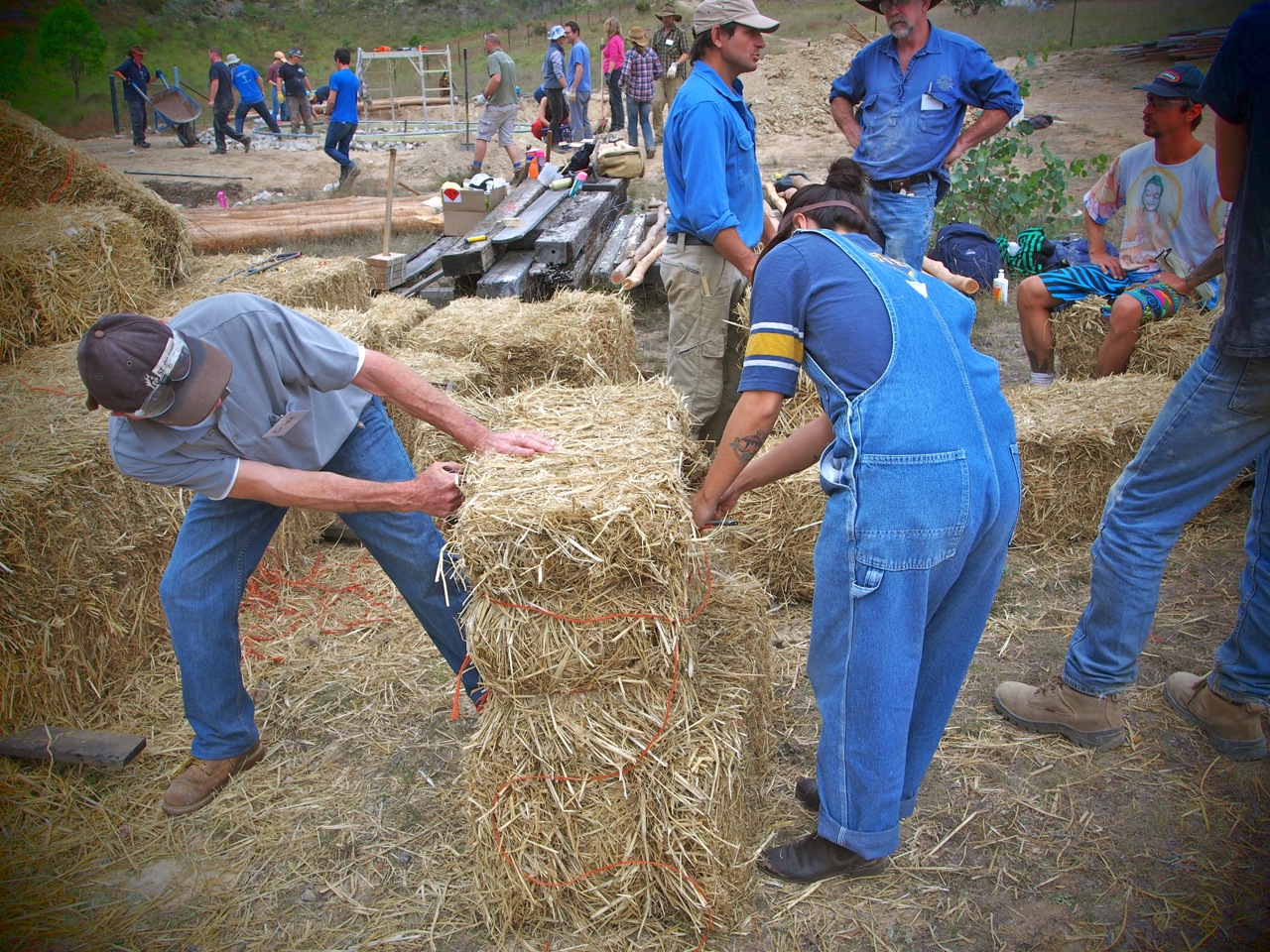

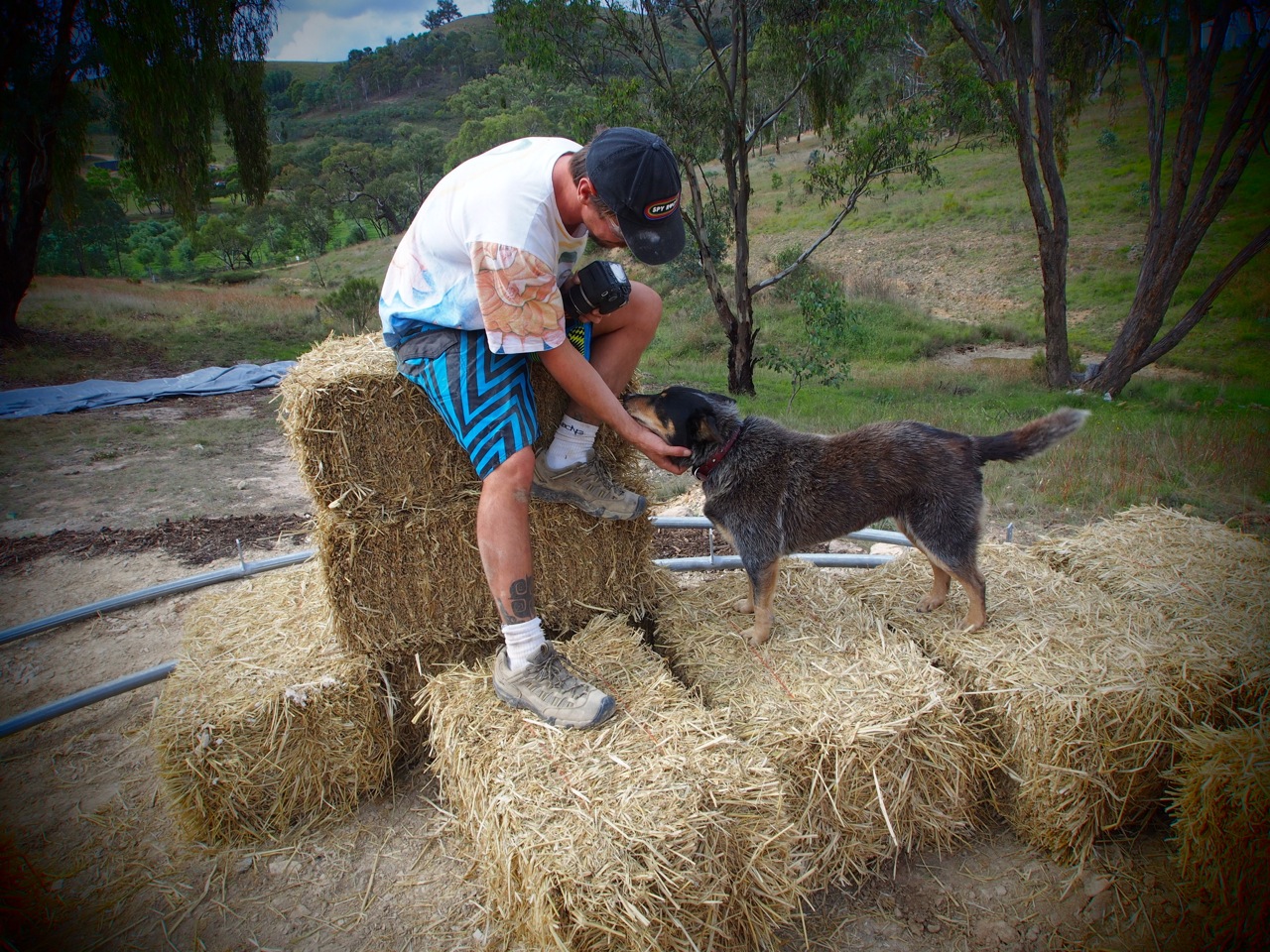

Knitting the bales with extra strings

Knitting the bales with extra strings

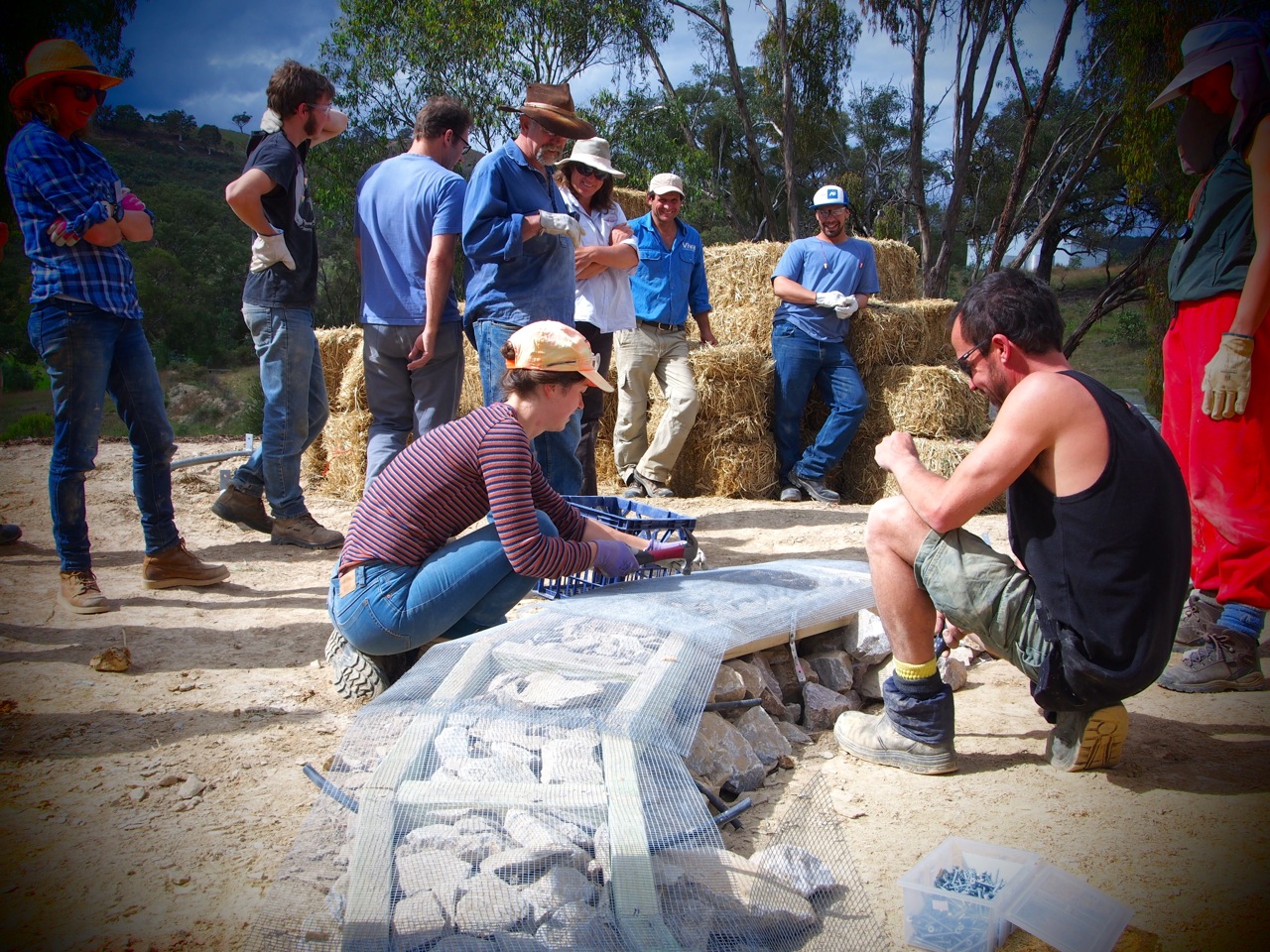

Applying a layer of fiberglass mesh at the base

Applying a layer of anti-pest steel mesh at the base

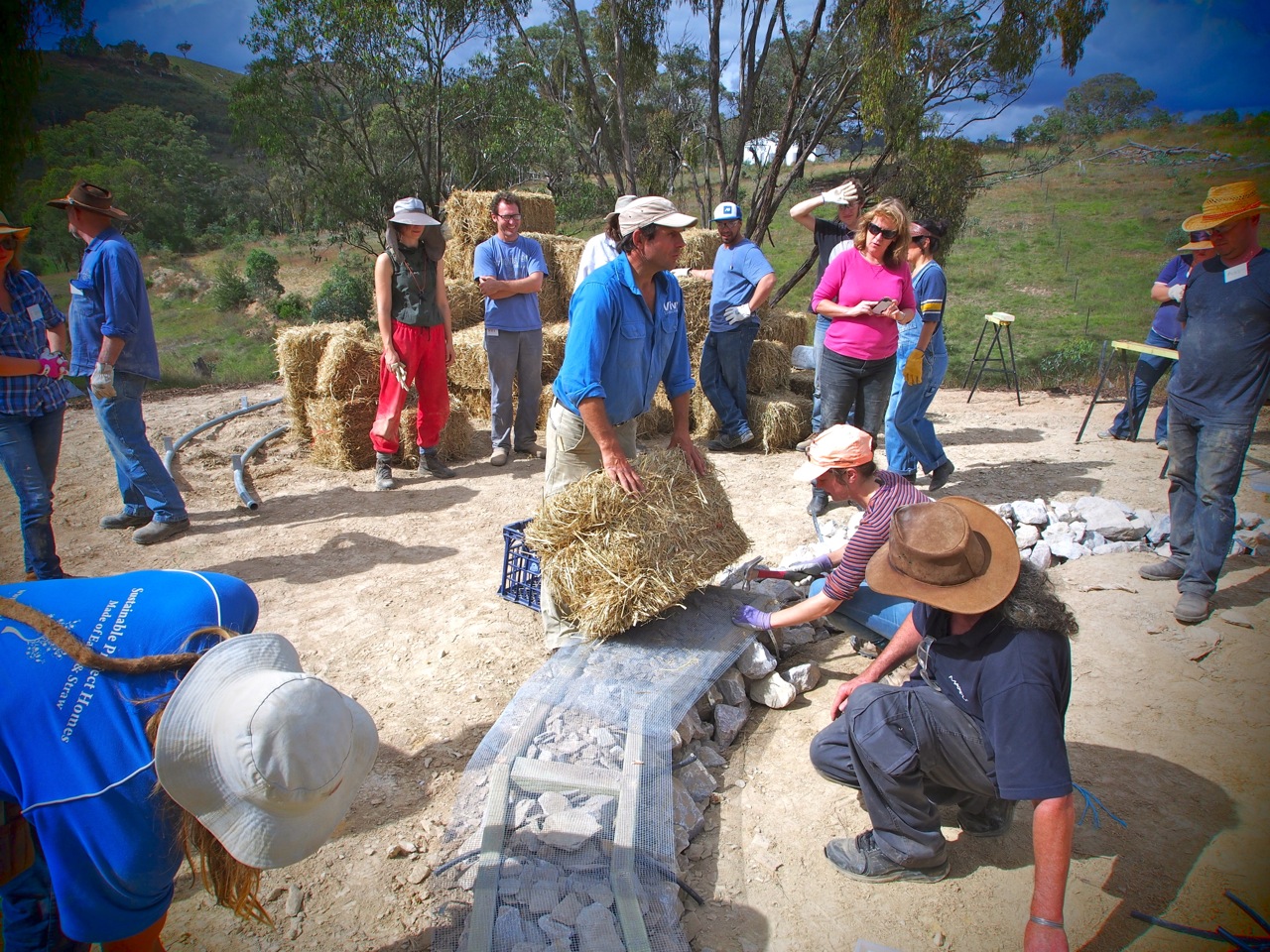

Sam Vivers places the inaugural bale...

Sam Vivers places the inaugural bale…

OLYMPUS DIGITAL CAMERA

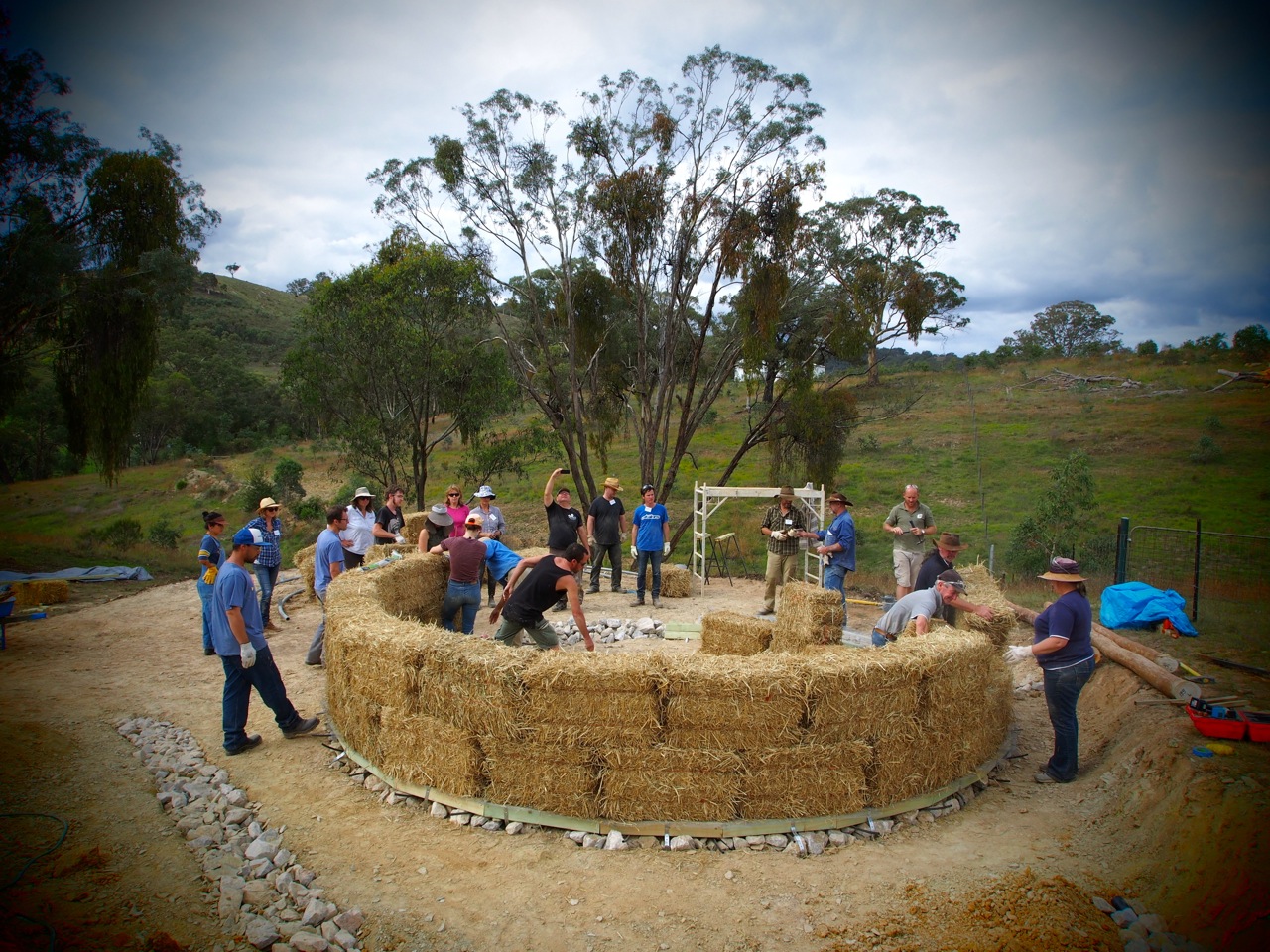

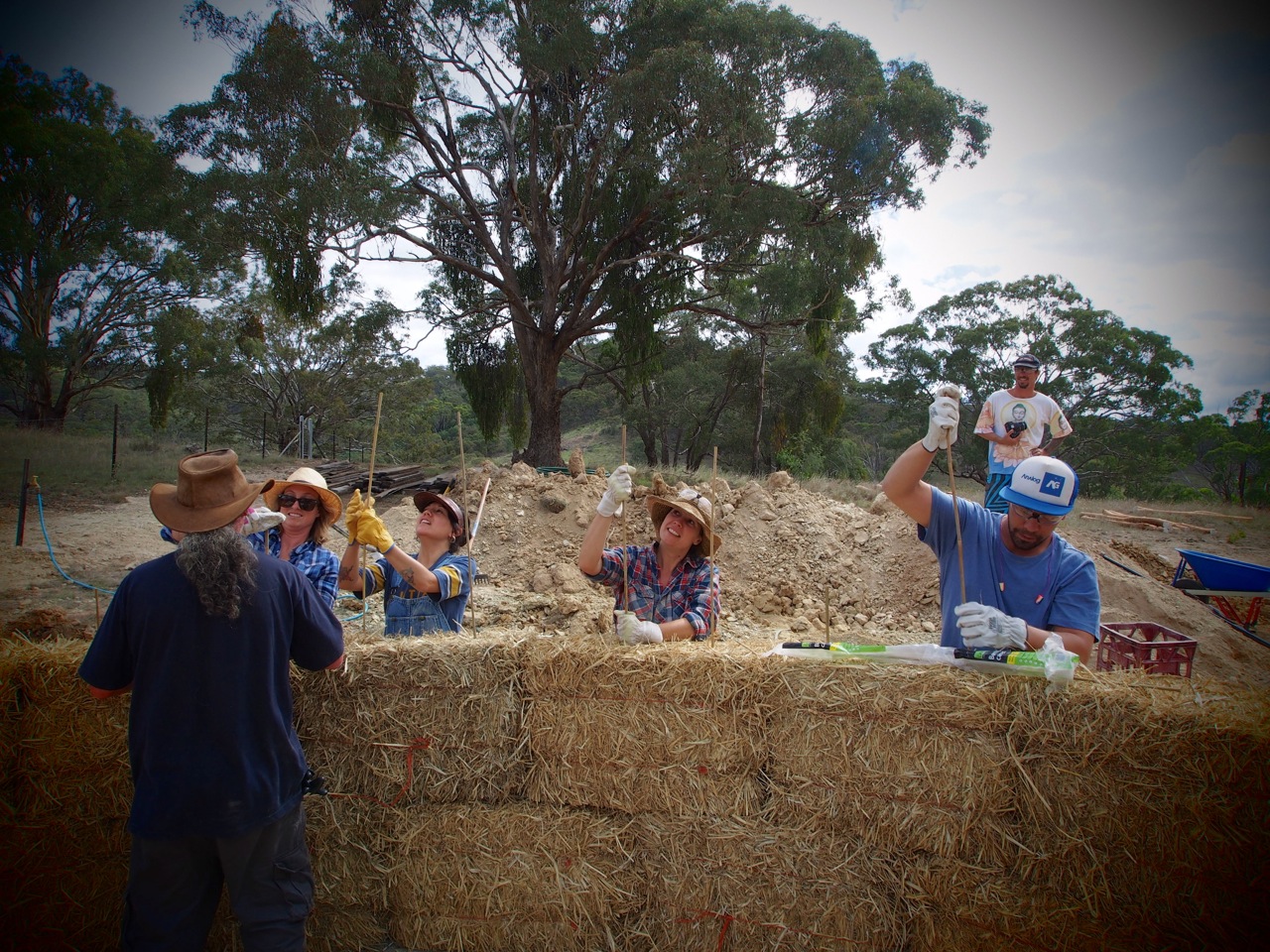

Threading bamboo into the walls for extra support while we build them high

Threading bamboo into the walls for extra support while we build them high

OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA

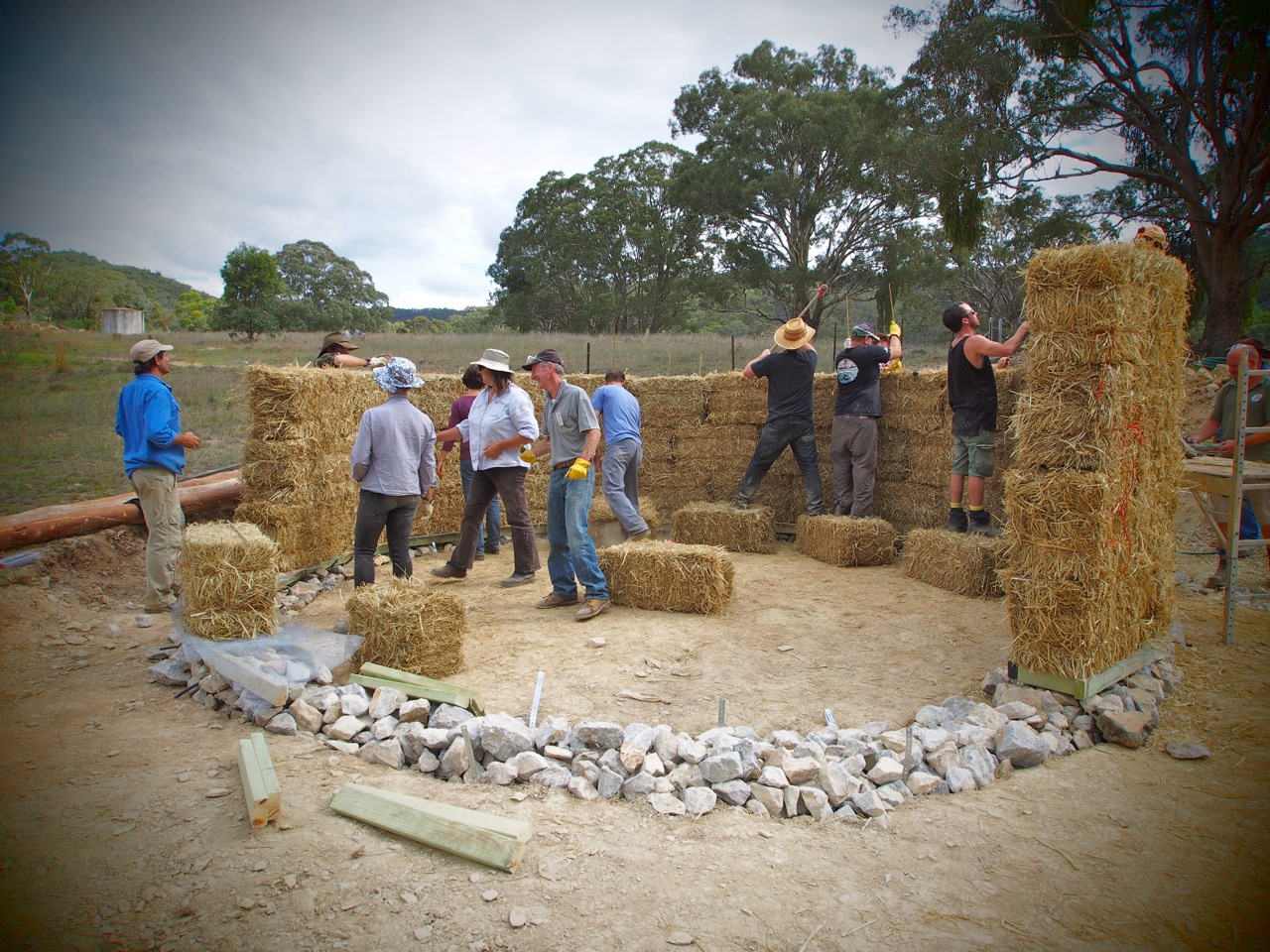

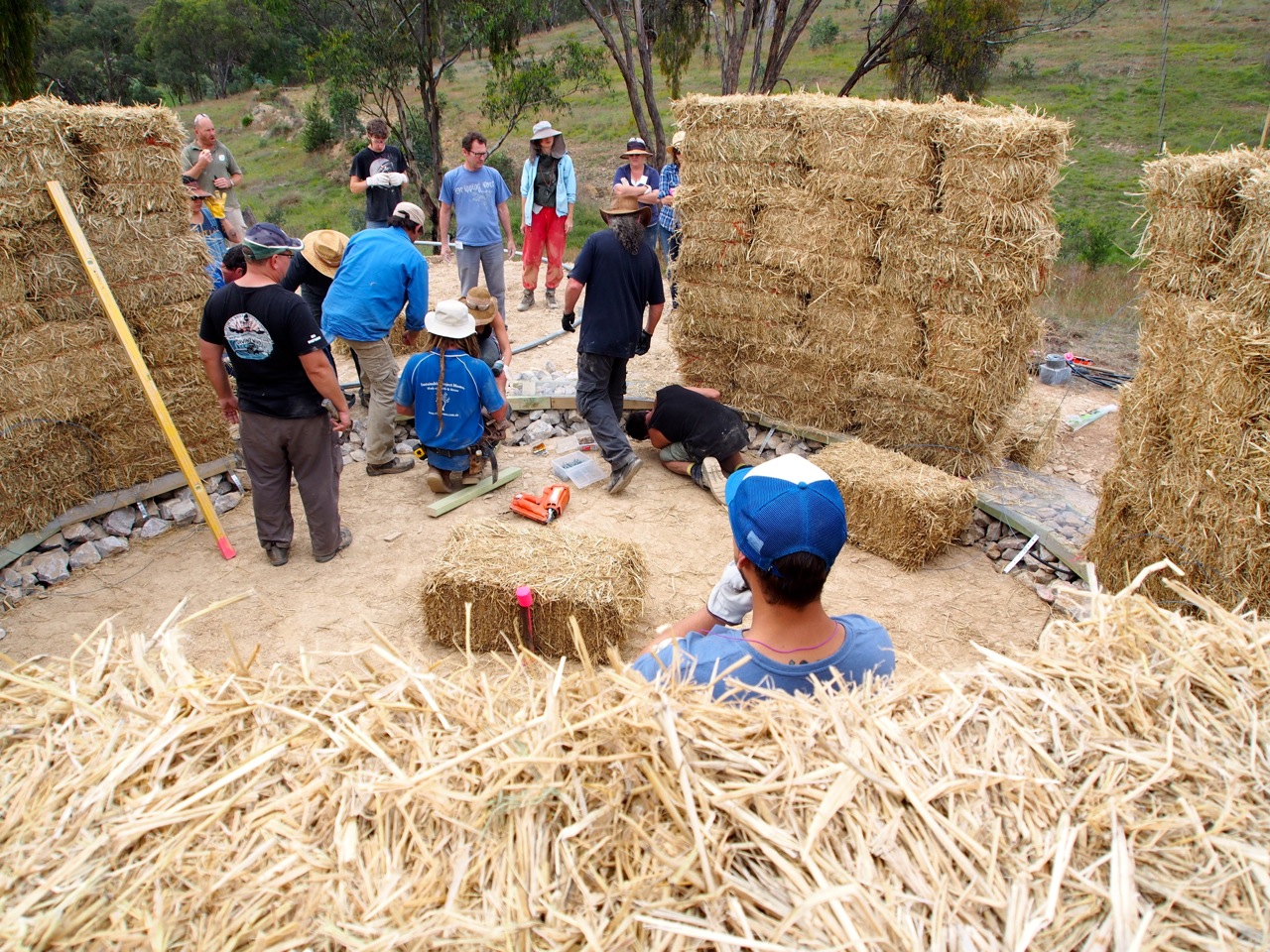

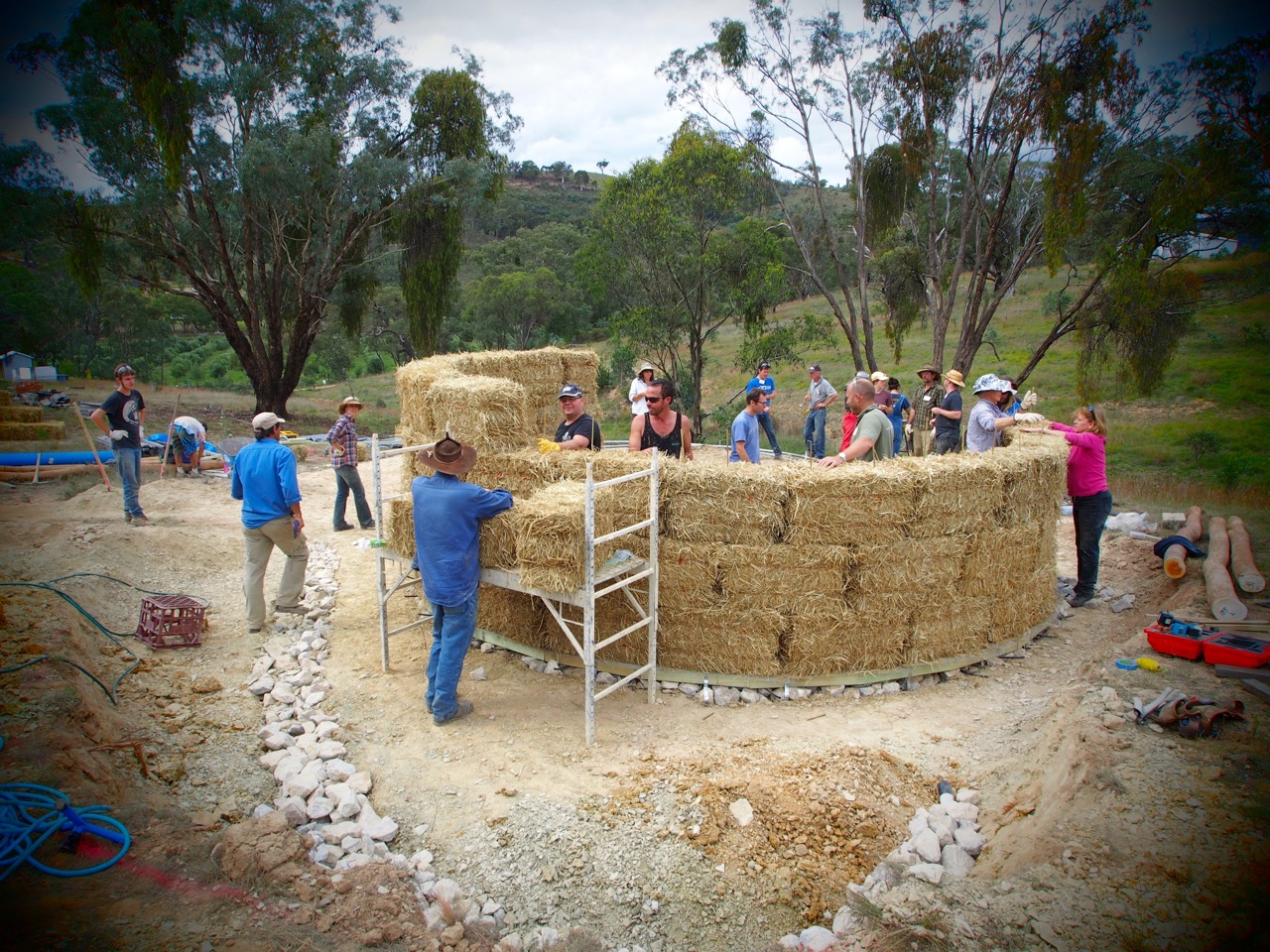

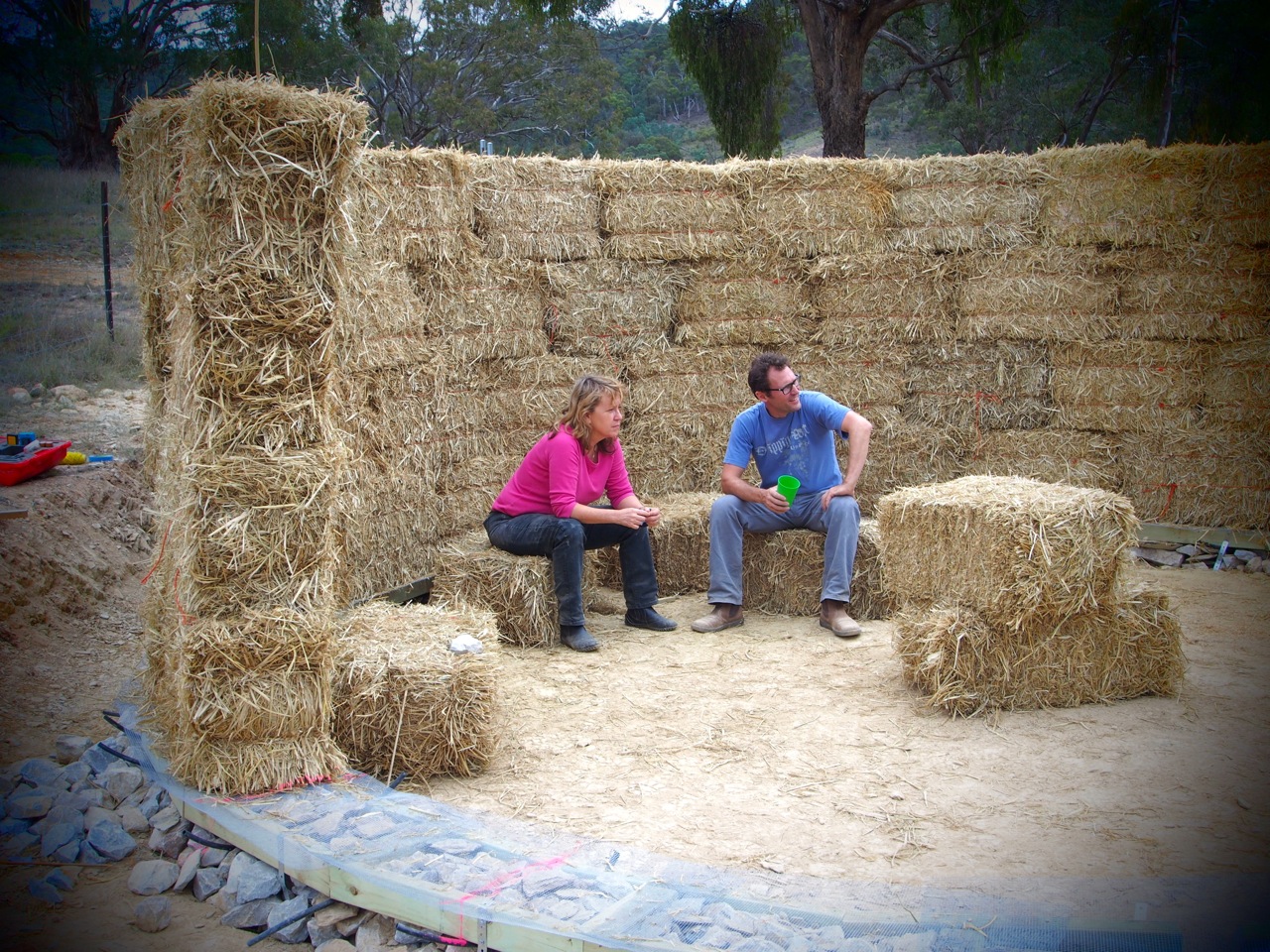

Leaving gaps for the windows and door...

Leaving gaps for the windows and door…

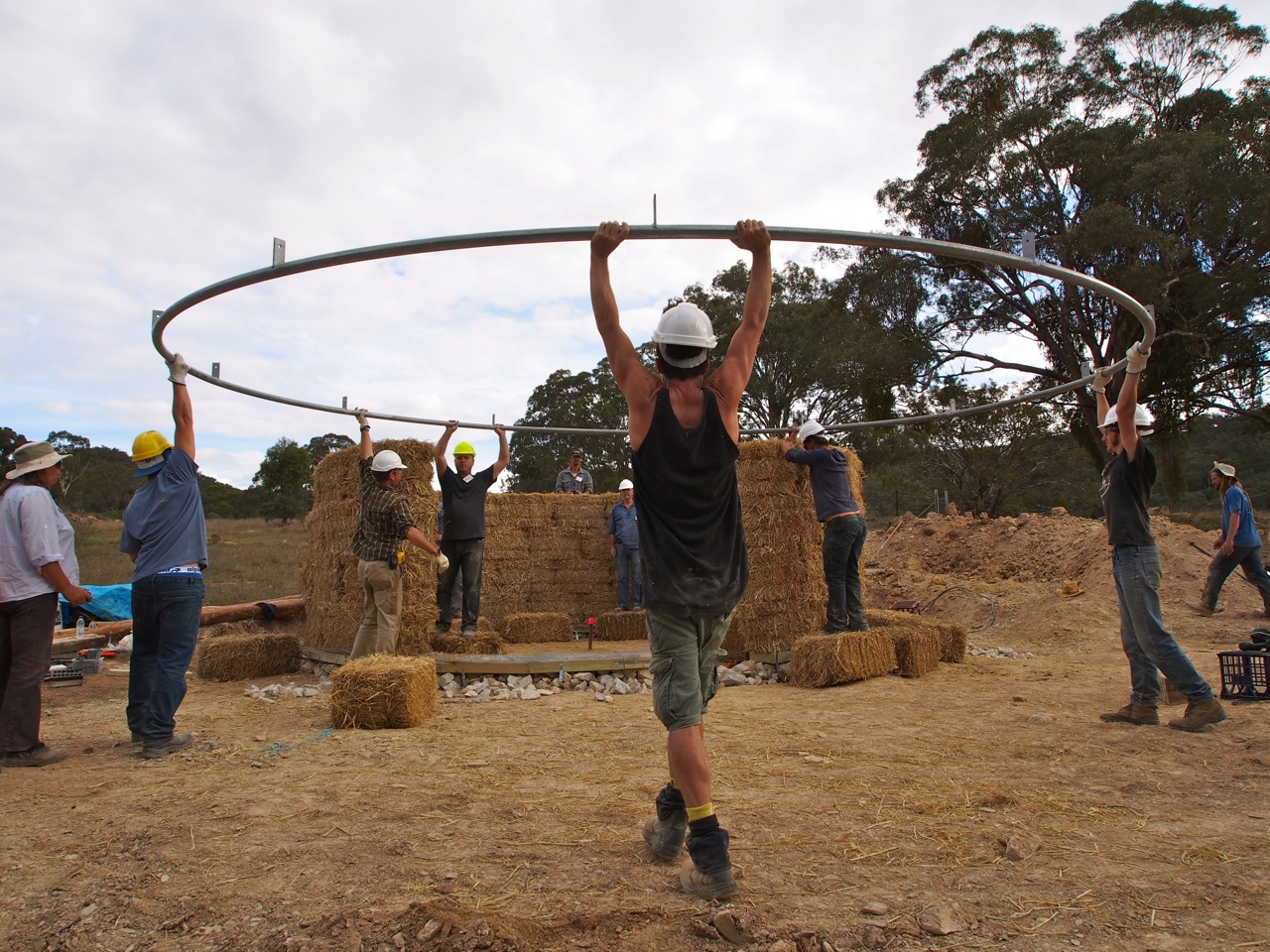

Time for the top-plate... which we got the local foundry to make up for us to save a heap of time

Time for the top-plate… which we got the local foundry to make up for us to save a heap of time

Ta da!

Ta da!

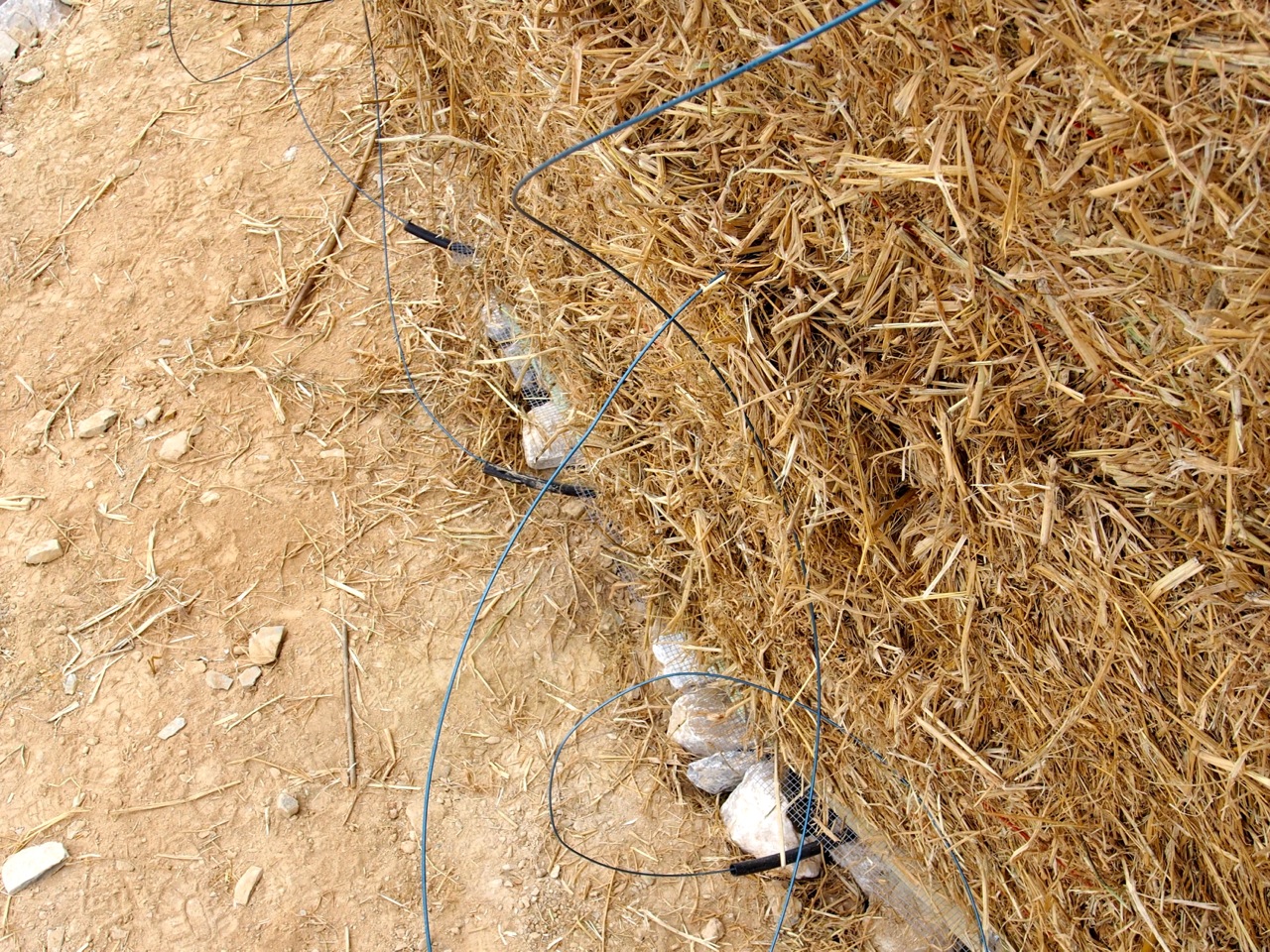

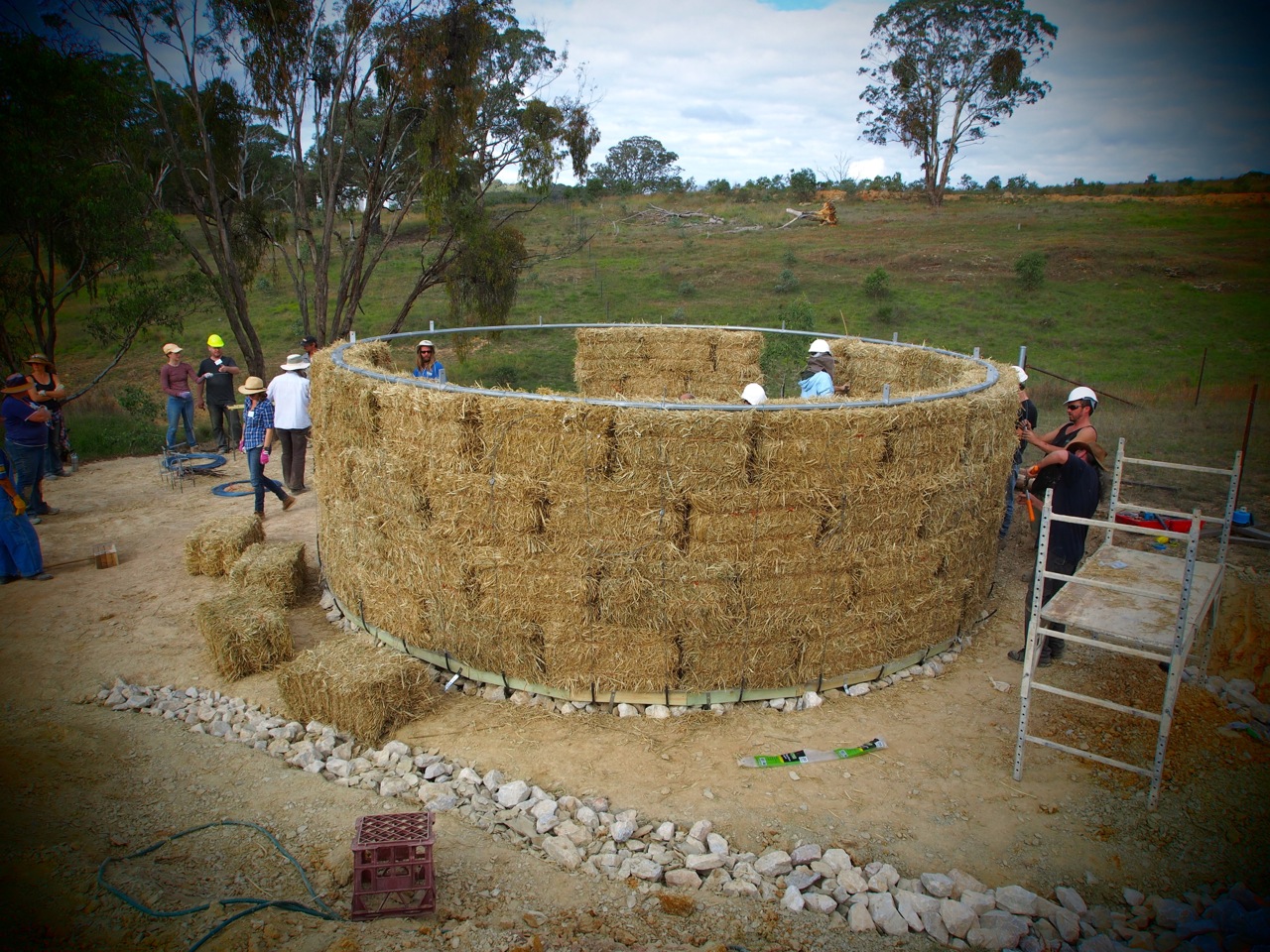

Tensioning wire all threaded through and ready...

Tensioning wire all threaded through and ready…

OLYMPUS DIGITAL CAMERA

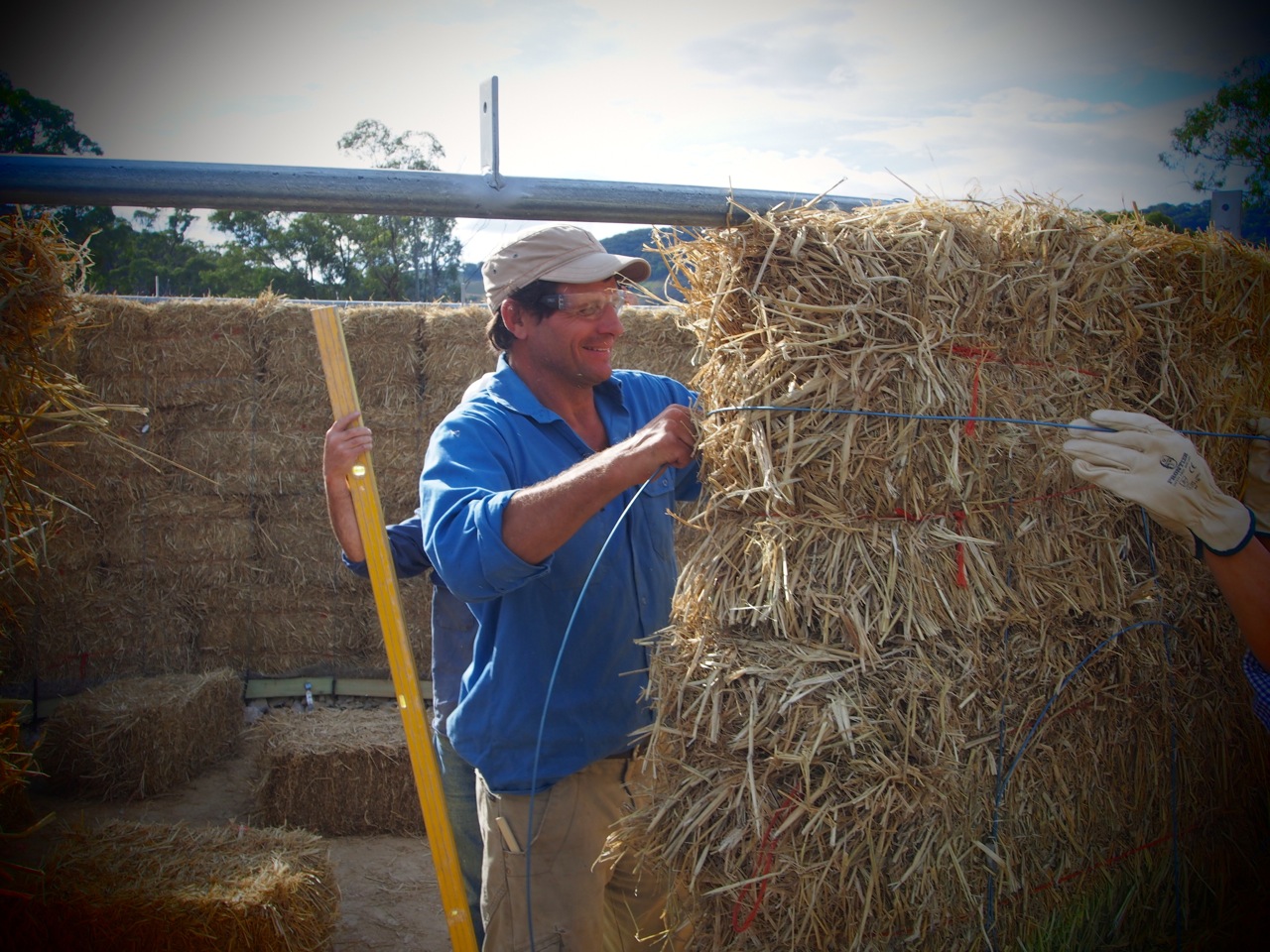

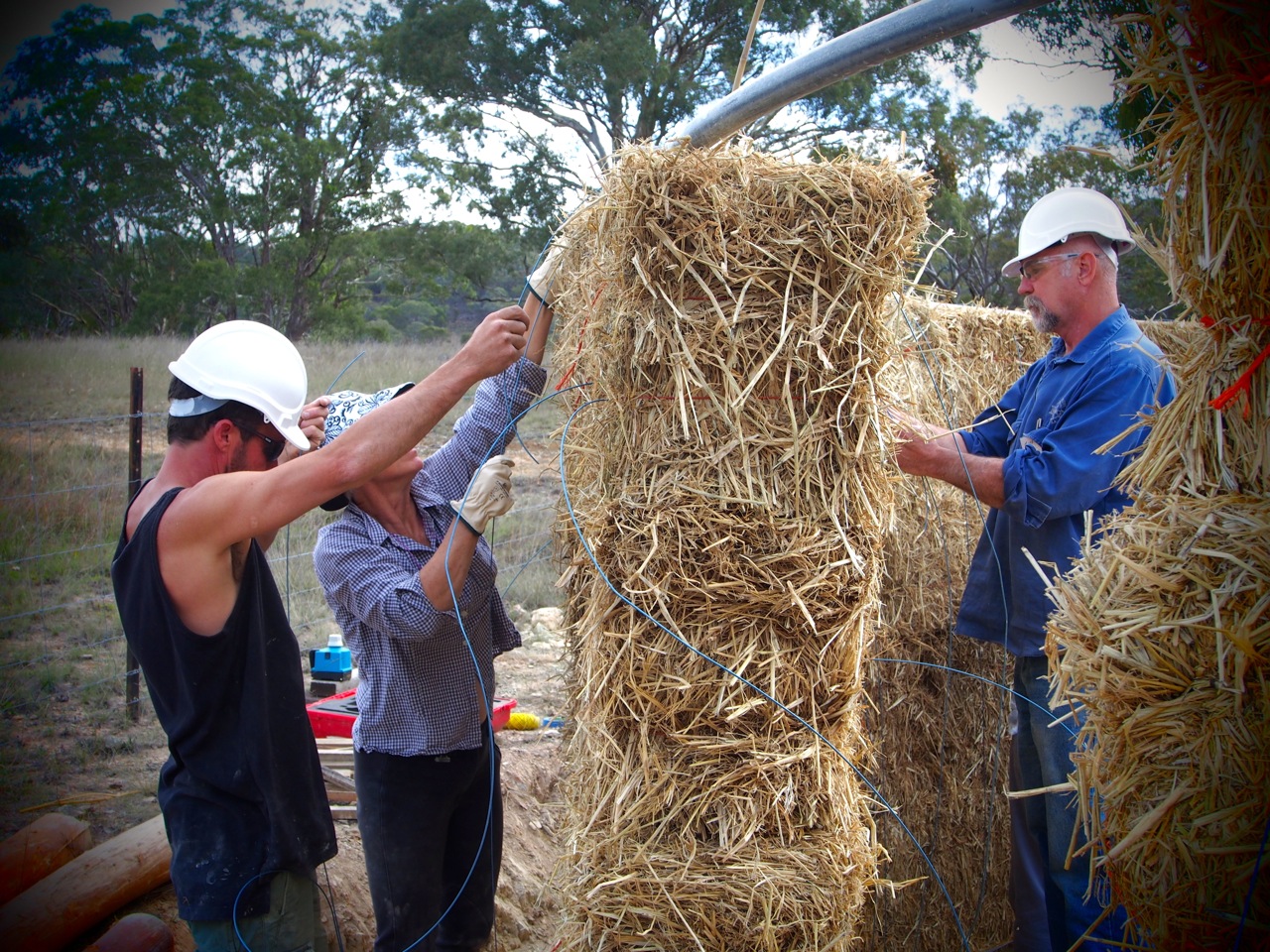

Threading the wire over the metal top plate and down the other side…

Time to compress the walls... bit by bit...

Time to compress the walls… bit by bit…

OLYMPUS DIGITAL CAMERA

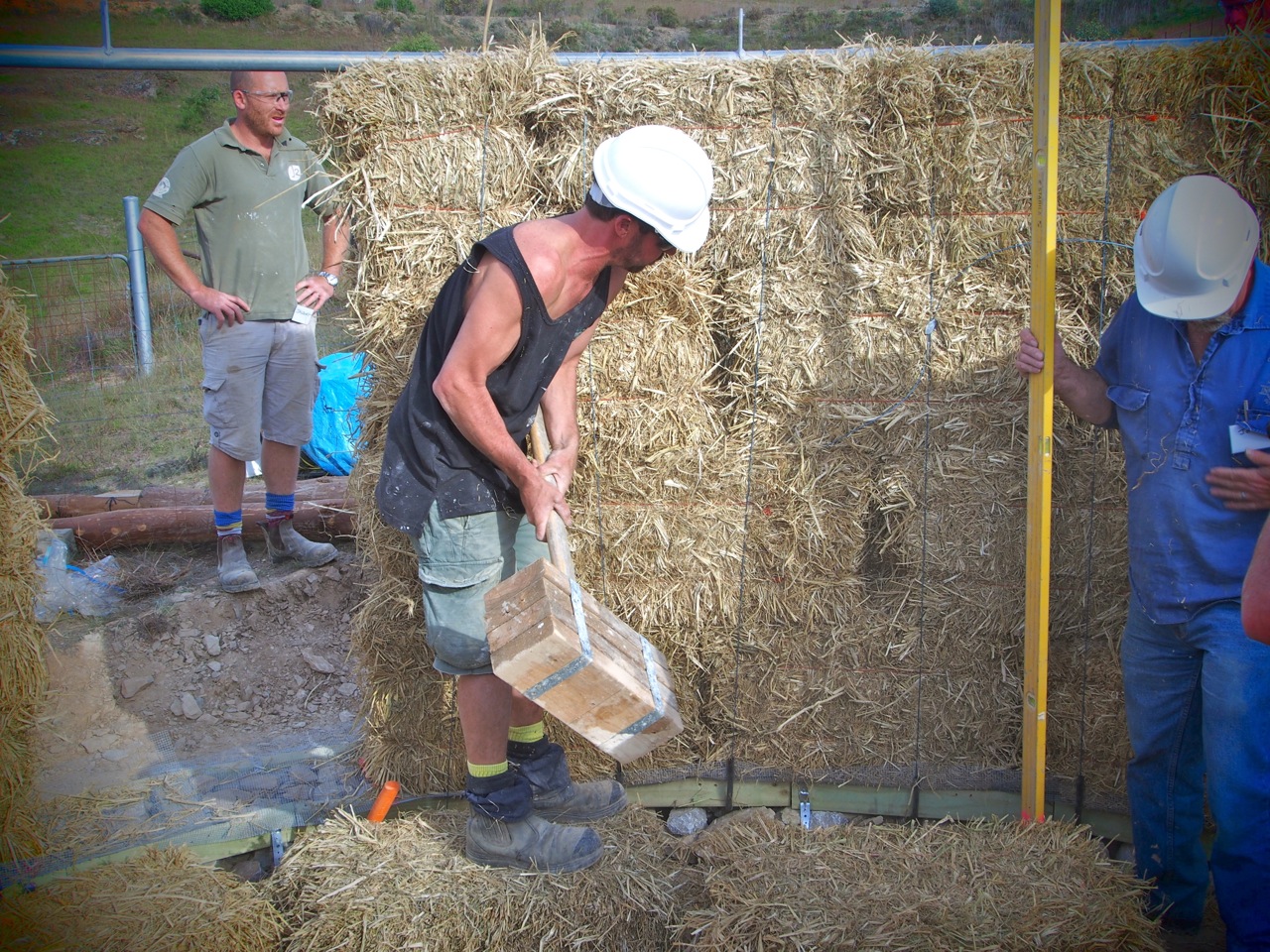

Just a little bit of persuading...

Just a little bit of persuading…

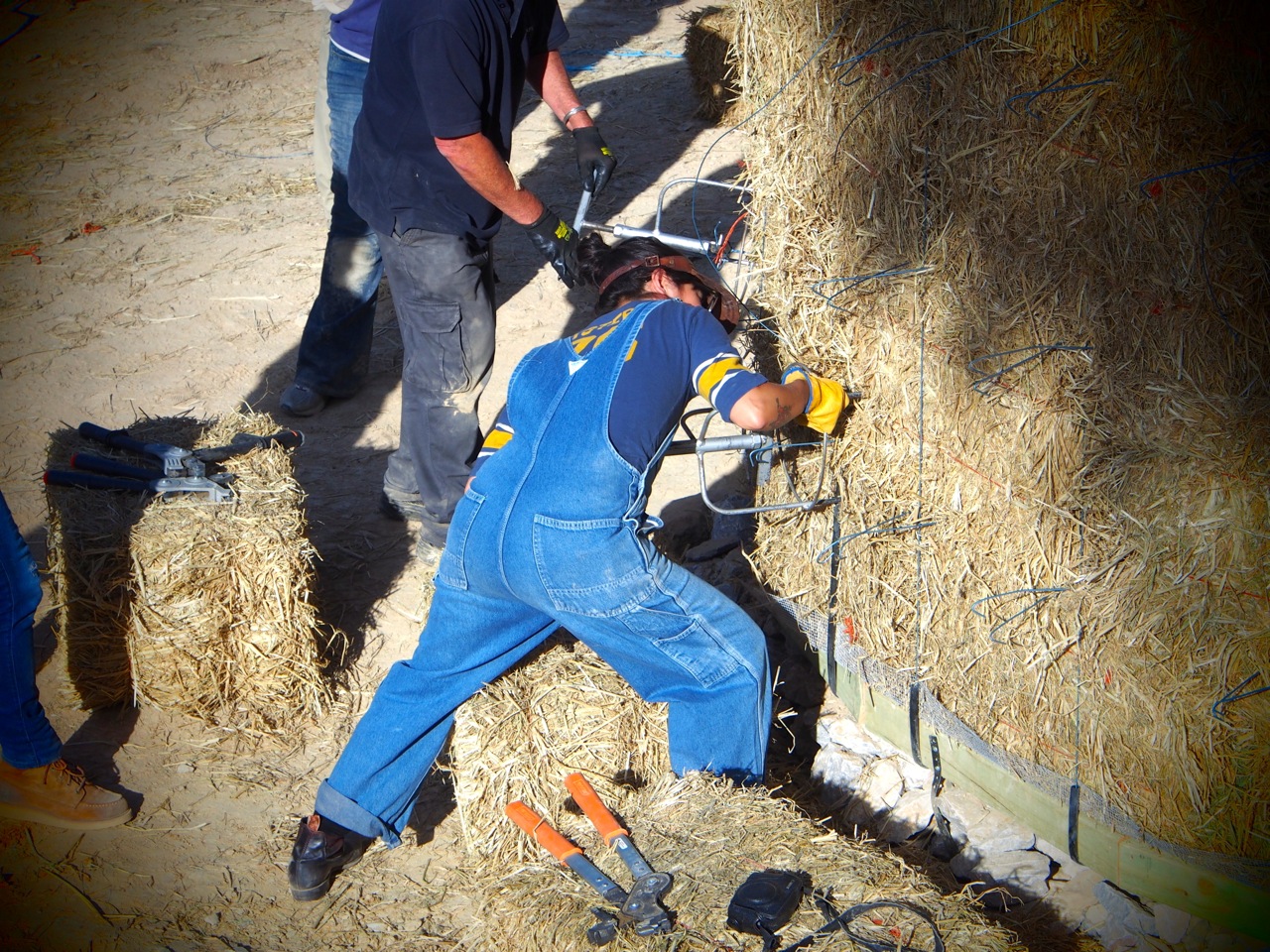

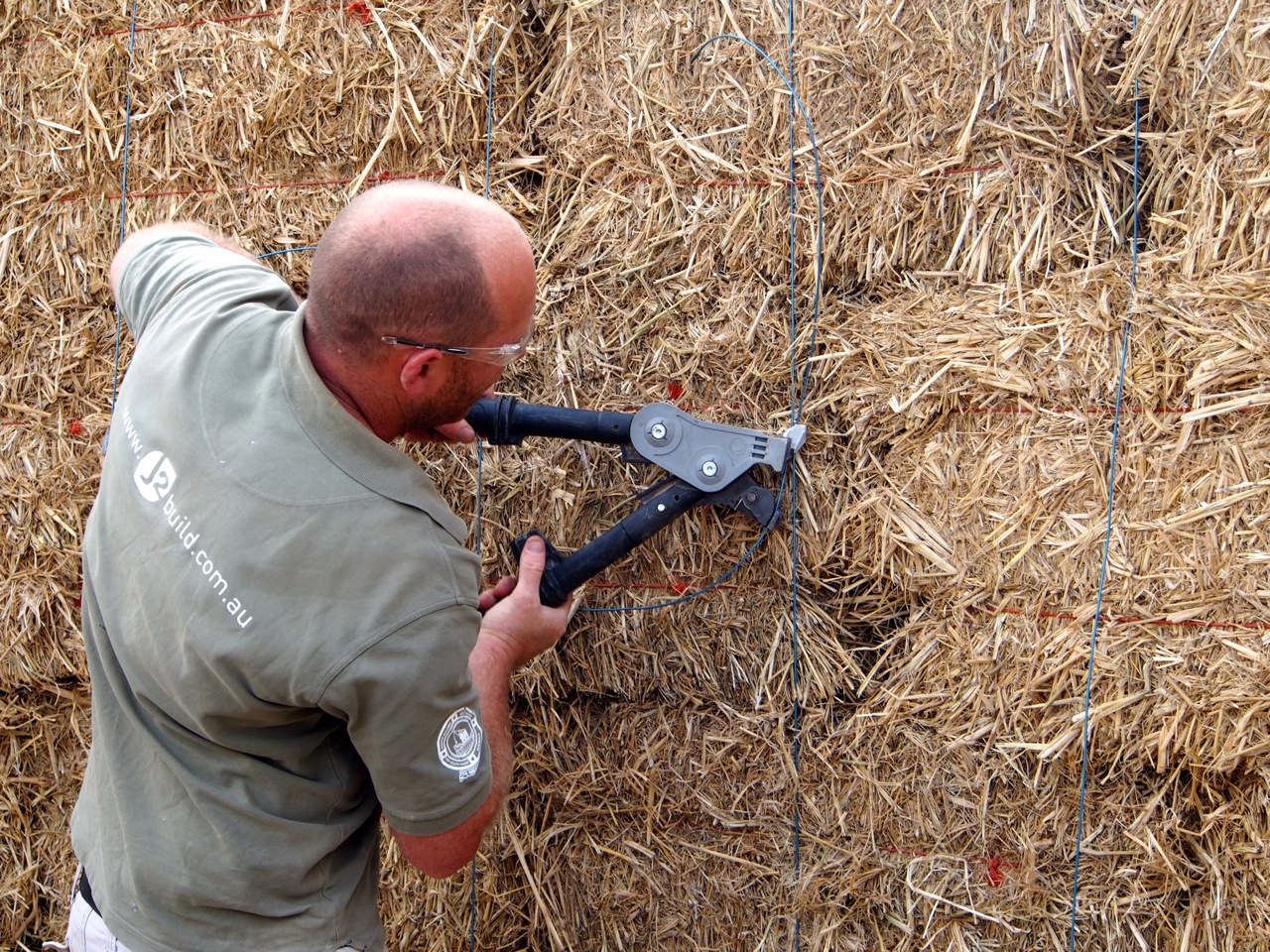

And a touch of re-jigging here and there...

And a touch of wire-twisting here and there

And that was it. Once the foundations were ready, the walls went up in a single afternoon. True, we had over 20 people on the job, and it was built as part of a workshop. But that’s not to say you couldn’t do the bale building with 20 friends and neighbours in a day, instead.

Because if raising a tiny house’s walls isn’t an excuse to get everyone you know around for an afternoon, what is?

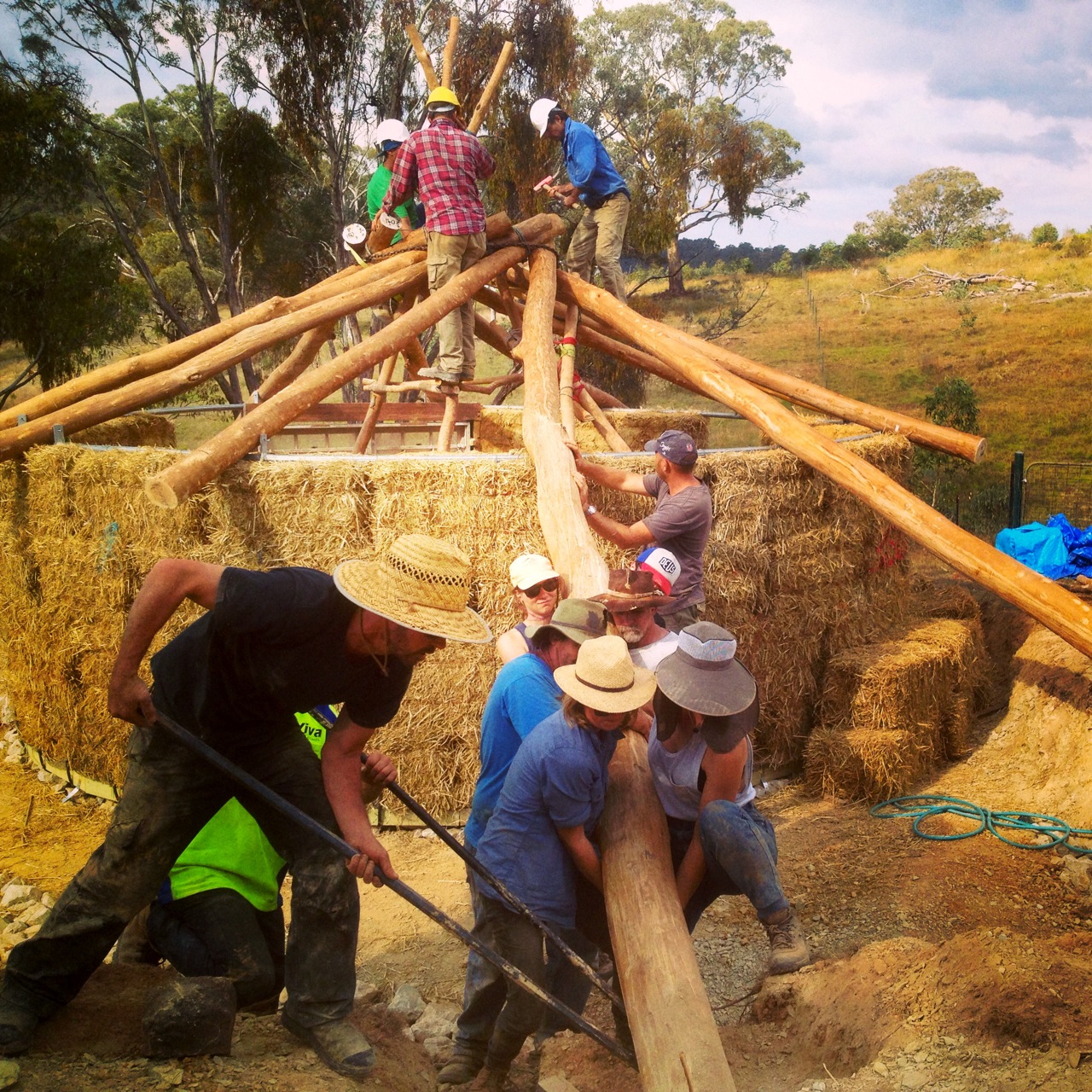

Next step was the reciprocal roundwood roof frame, but I’ll go into that next time around.

And now... for the roof!

And now… for the roof!

Check out our upcoming Natural Building courses here! We run them at a variety of locations with Sam Vivers of Viva Living Homes – 4 days of awesome theory and hands-on knowledge.

>> More posts about Natural Building here…

Big cheers and thanks to Sam Vivers and to all who contributed their energy to this build, and to Floyd for most of the photos above.
